| Model | YZJ330 | YZJ380 |
| Cutting length | 3200mm | 3800mm |
| Max height of saw blade | 120mm | 120mm |
| Cutting thickness | 0-90mm | 0-90mm |
| Feeding speed | 0-80m/min | 0-80m/min |
| Cutting speed | 0-100m/min | 0-100m/min |
| Feeding power | 1.3KW servo motor | 1.3KW servo motor |
| Trolley traction motor power | 1.3KW servo motor | 1.3KW servo motor |
| Main saw power | 15KW aluminum alloy motor | 15KW aluminum alloy motor |
| Scoring saw power | 2.2KW aluminum alloy motor | 2.2KW aluminum alloy motor |
| Fan power | 2.2KW | 2.2KW |
| Total power | 22KW | 22KW |
| Main saw diameter | 380mm/400mm | 380mm/400mm |
| Inner hole of main saw blade | 60mm | 60mm |
| Scoring saw diameter | 180mm | 180mm |
| Inner hole of scoring saw blade | 45mm | 45mm |
| Dimension | 5500*6500*1750mm | 6000*6500*1750mm |
| Weight | 6000KGS | 7000KGS |

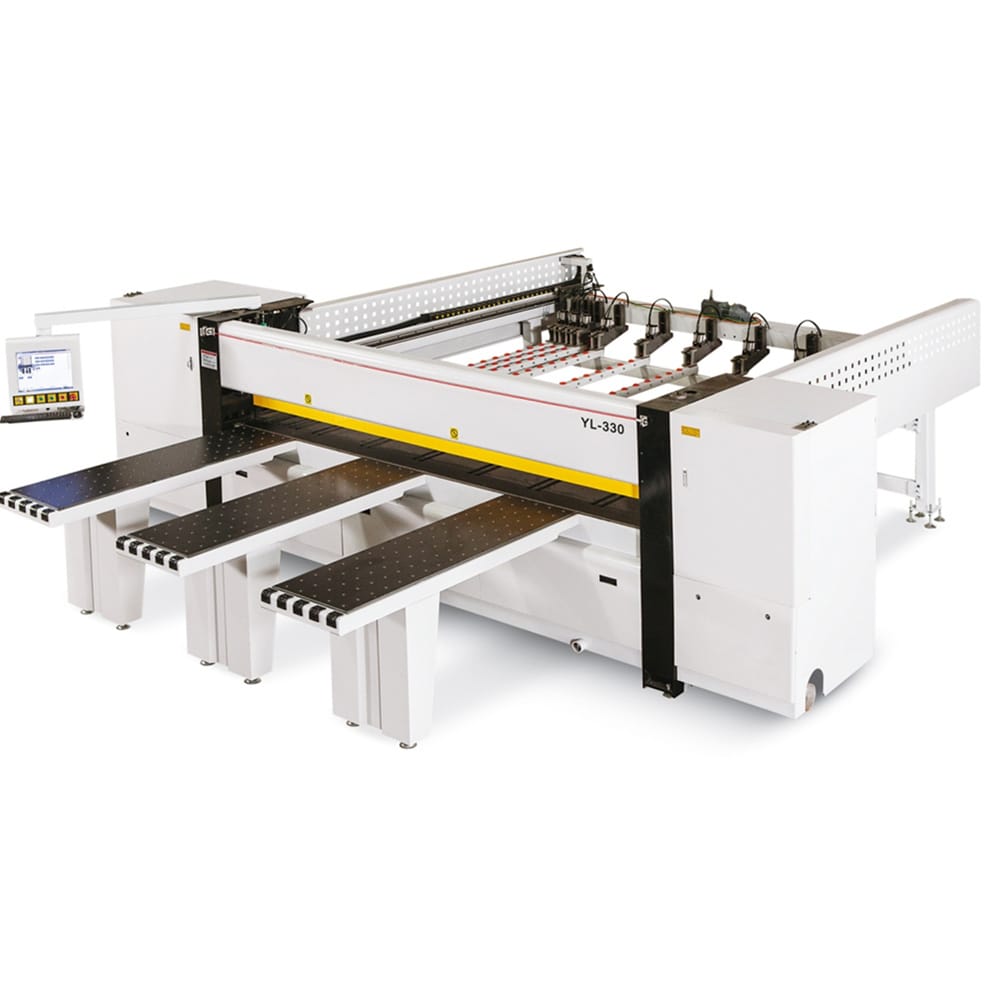

CNC BEAM SAW CUTTING MACHINE Functions
Its used for cutting plywood, MDF, particleboard etc
