| working width | 40-1300mm |
| working length | ≥300mm |
| Sanding belt size | 1330*2200mm |
| 1#、2#belt speed | 21m/s、19m/s |
| working pressure | 0.55Mpa |
| Dust extraction air volume | 10000m³/h |
| Working thickness | 3-120mm |
| Feeding speed | 7-30m/min inverter |
| Main motor | 37KW；30KW；22KW |
| 3#belt speed | 18m/s |
| Compressed air consumption | 0.2m³/min |
| Vacuum motor | 5.5kw |

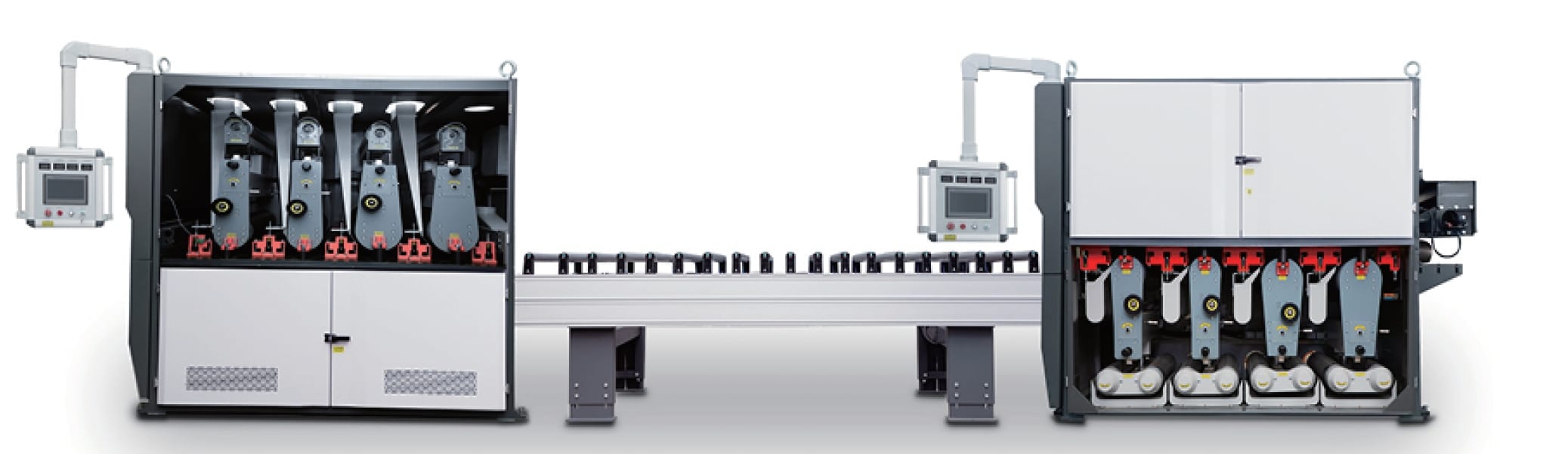

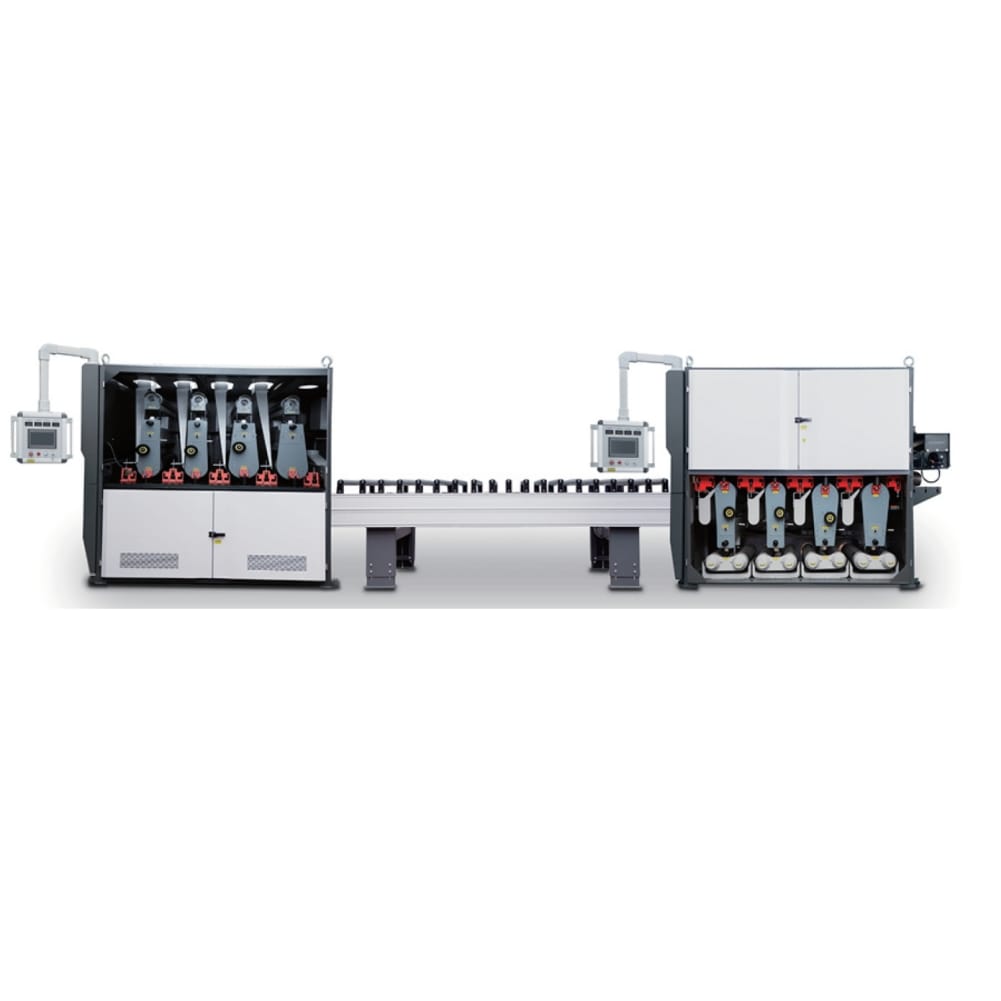

TOP BOTTOM WIDE BELT SANDER:
Top wide belt sander with fixed working table, top machine body move up and down, the bottom sander used for sanding the bottom side of panels, make sure top and bottom can be sanded one time.
