| Model | CA12 |
| Working table | 2440*1220mm |
| Working Area（X、Y、Z axis） | 1300*2500*200mm |
| Worktable | Vacuum worktable or T-slot Aluminum |
| Spindle motor | 9kw Air-cooling Spindle JST/CS/CC |
| Driving motor | 0.85kw*4, Servo Motor(Double motor with Y AXIS) |

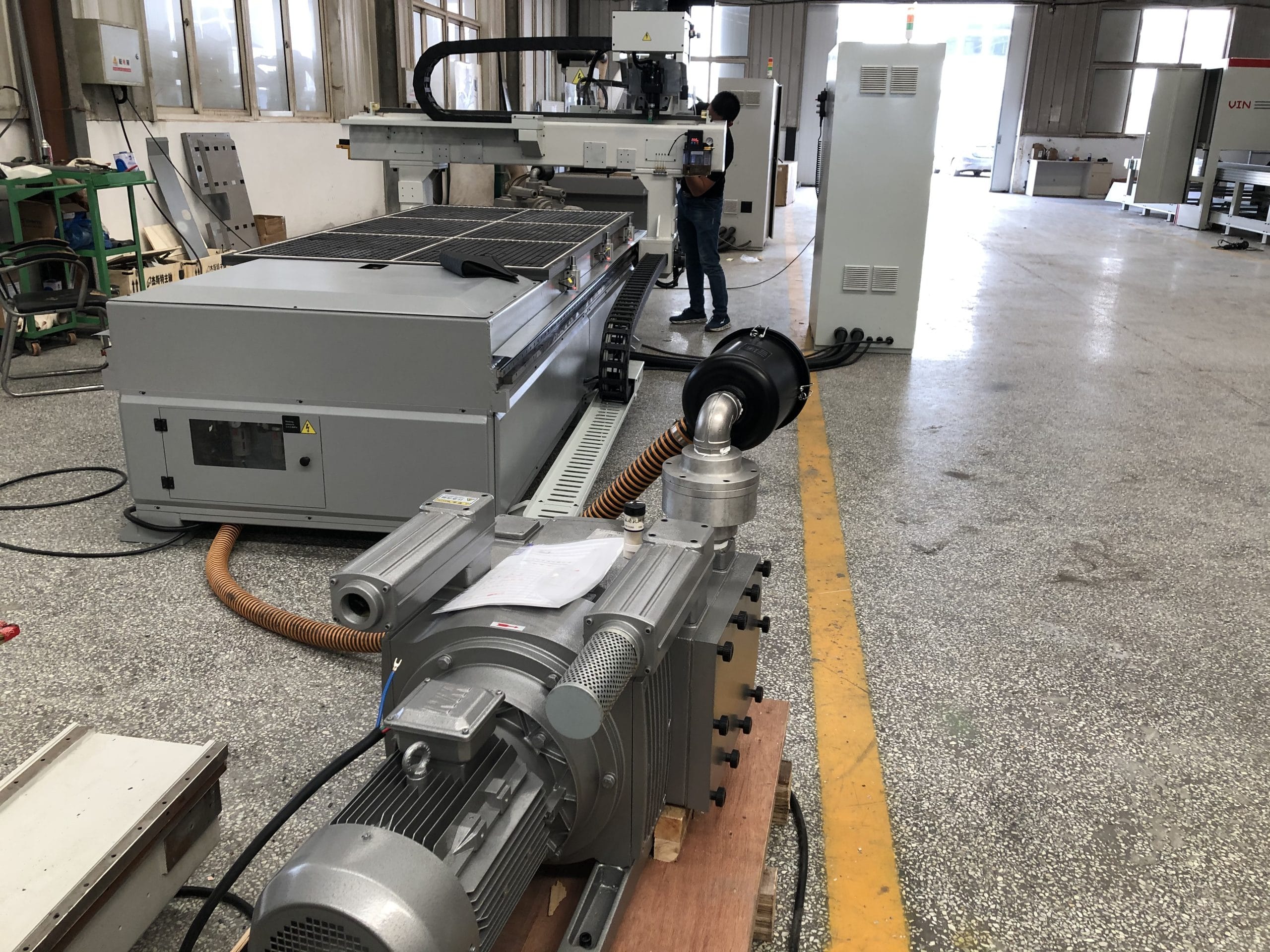

| Vacuum pump motor | 7.5kw WATER cooling |

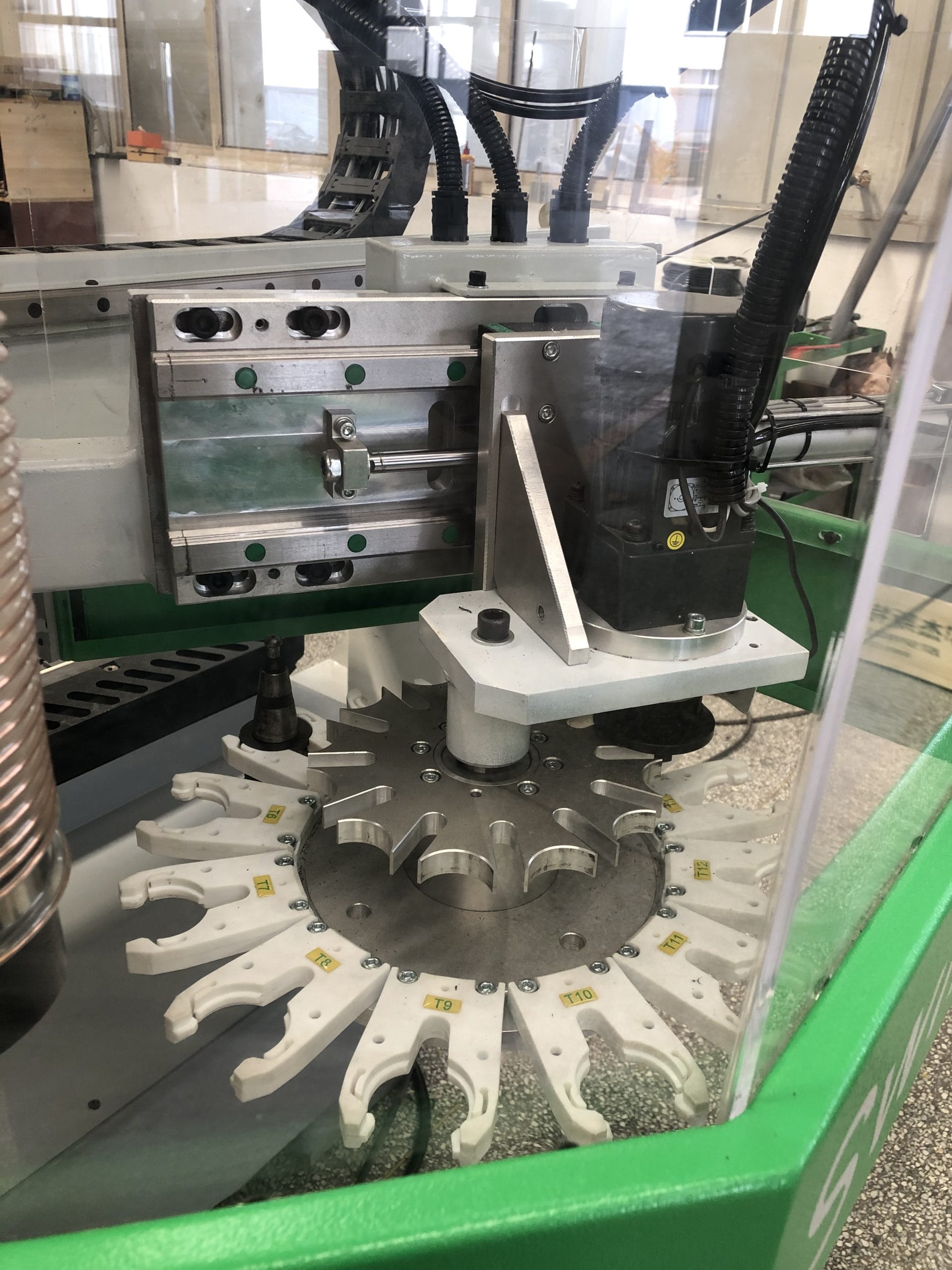

| Blade store | 12 blade tools |
| Tool Diameter | φ3.175-φ12.7mm |
| Support software | Artcam, Alphacam, Mastercam, Type3, UG, Caxa, JD Paint etc. |
| Guide way | Taiwan linear rail for X、Y、Z axis |
| Working precision | ±0.05mm |
| Dimension | 2250*3800*2200mm |
| Weight | 2600kg |

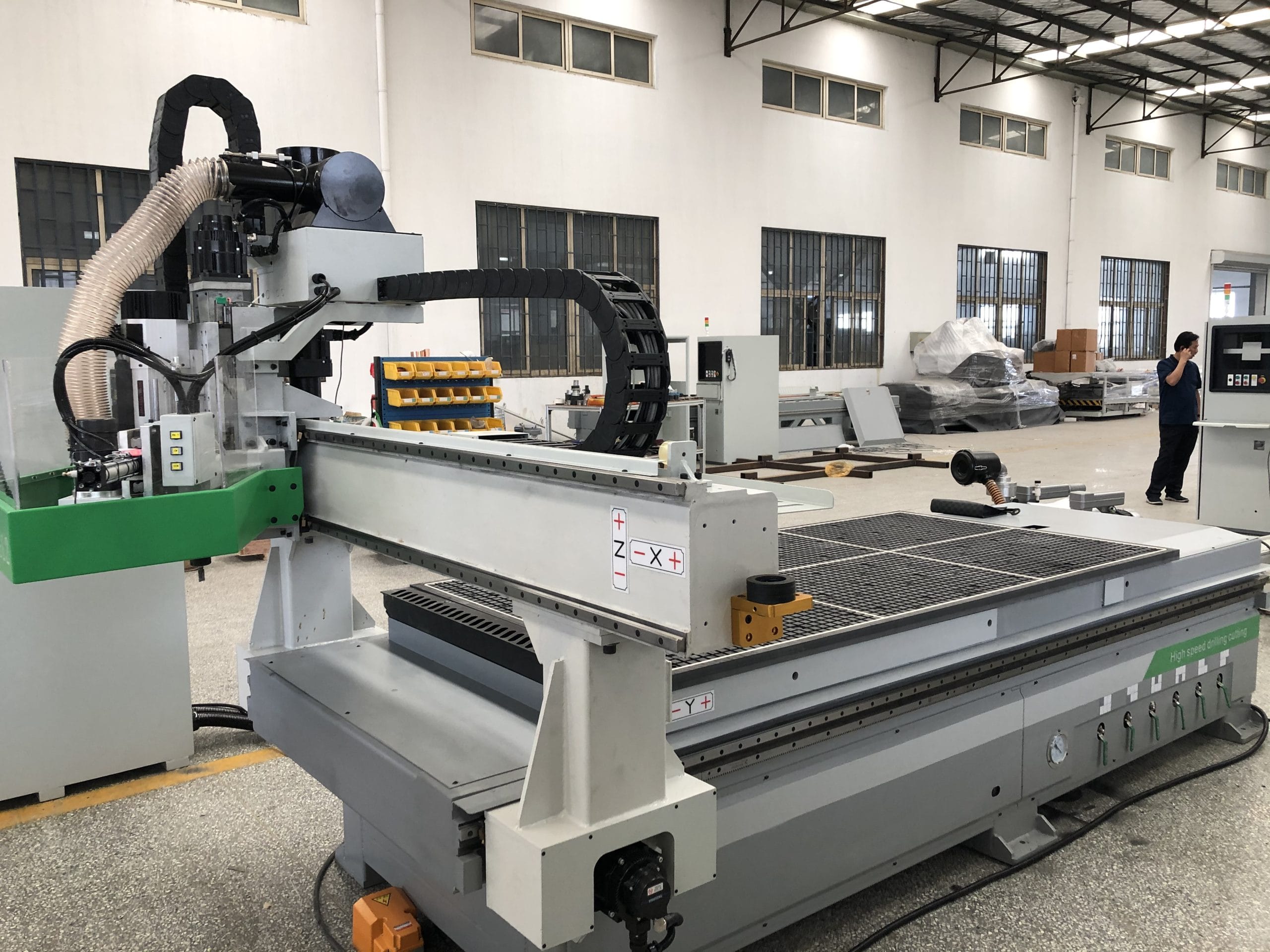

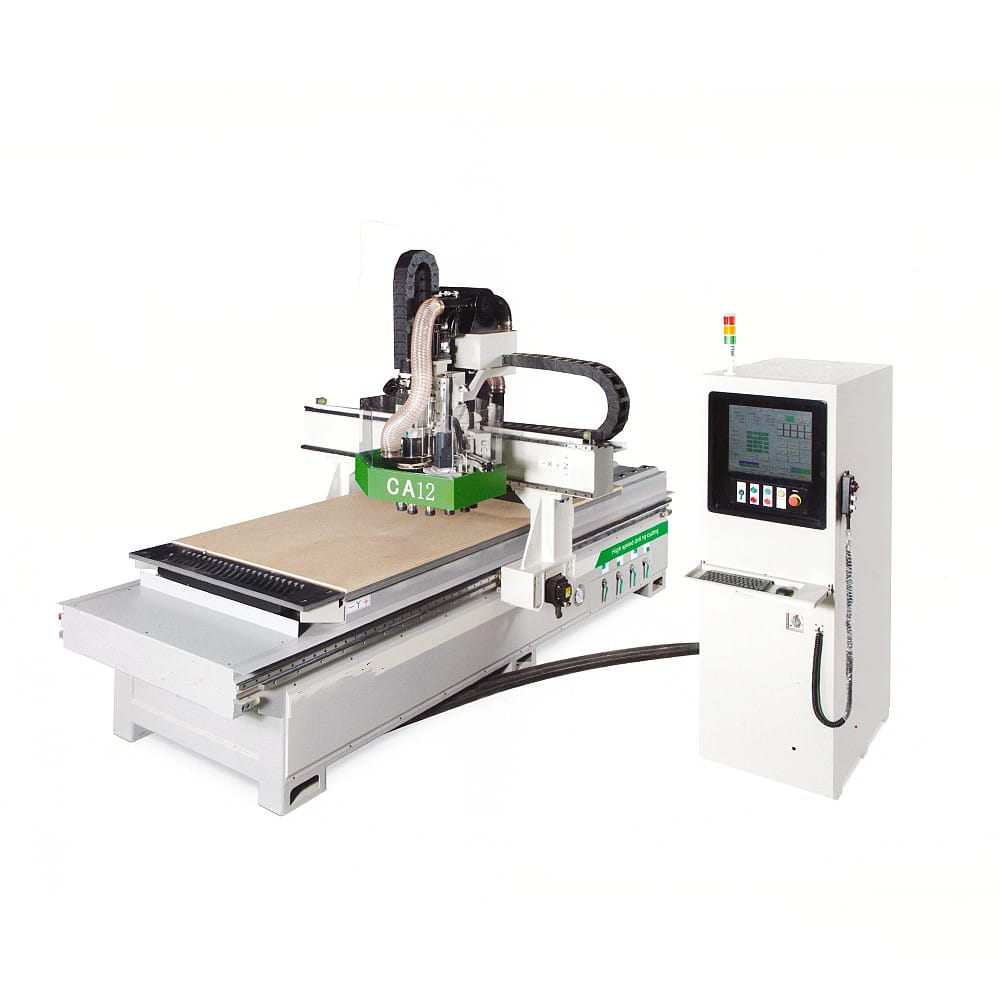

ATC CNC ROUTER MACHINE
Its used for cutting and engraving different kinds of wood panels, such like plywood, MDF, particleboard etc
