| Model | TM3200C |
| Table size | 3000 x1320x50 mm |
| Working size | 3000 x1300x40 mm |
| Negative(-) pressure | 0~0.095mpa |
| Positive(+) pressure | 0.5~0.6mpa |
| Membrane pressure | 0.3~0.5mpa |
| Oil pressure | 10mpa (low press:4 top P25kw) |
| Working Speed | 2~4 min/1 time |
| Total power | 52.6kw |
| Top heating | 25.2kw |
| Under heating | 14.4kw |
| Conducting oil pump | 0.4kw |
| Outside size | 12000x2150x 2250mm |
| Total weight | 16000kgs |

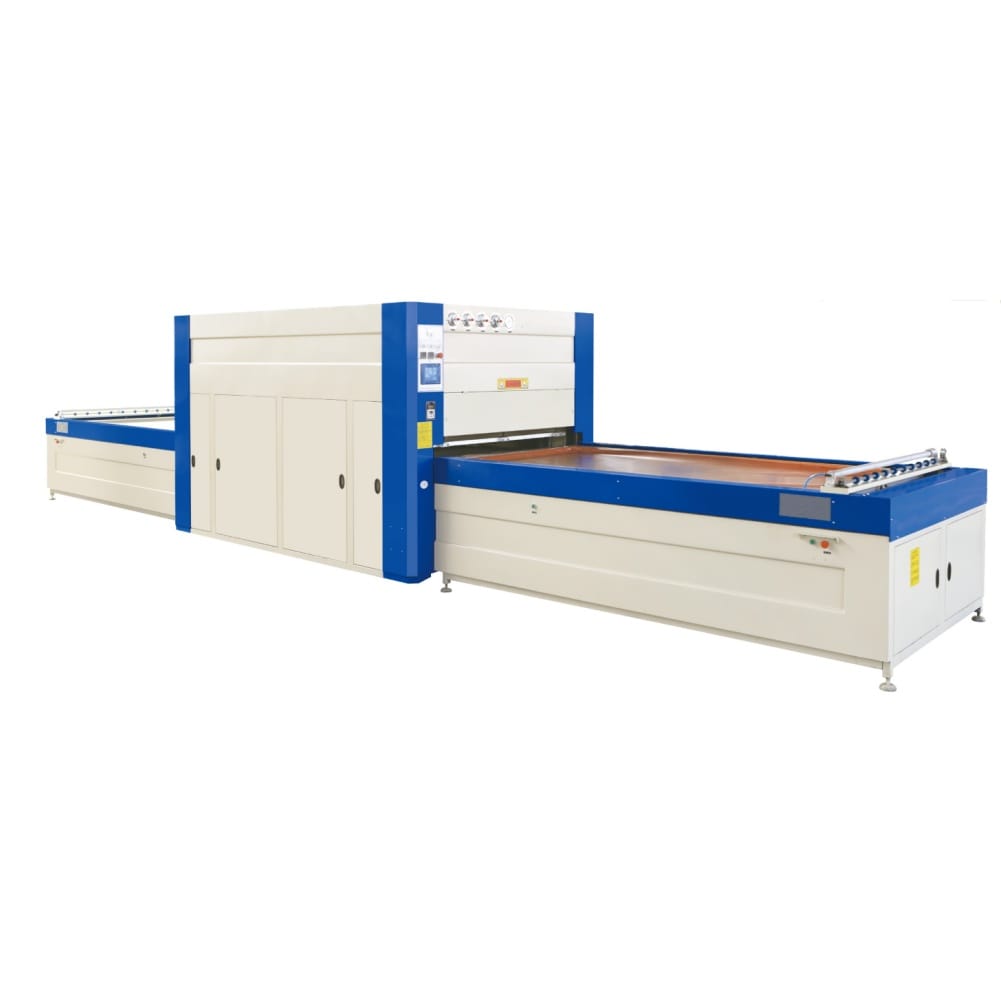

Vacuum Membrane Press Machine Function
It can be used to cover PVC on the surface of the craft compound door, furniture, cabinet
