| Working Width | 40-1300mm |
| Working length | ≥630mm |
| Working Thickness | 3-100mm |
| Size of Sanding Belt | 1330x2200mm |
| Speed of Sanding Belt | 19m/s ,18m/s |
| Main Motor Power | 37Kw;22Kw |
| Feeding Motor | 4Kw |
| Feeding Speed | 6-30m/min |
| Consumption of compressed air | 0.1m3/min |
| Speed of sucked air | 22-25m/s |
| Working Air Pressure | 0.55Mpa |
| Net Weight | 4800KG |
| Overall Dimension | 2520x2680x2150mm |

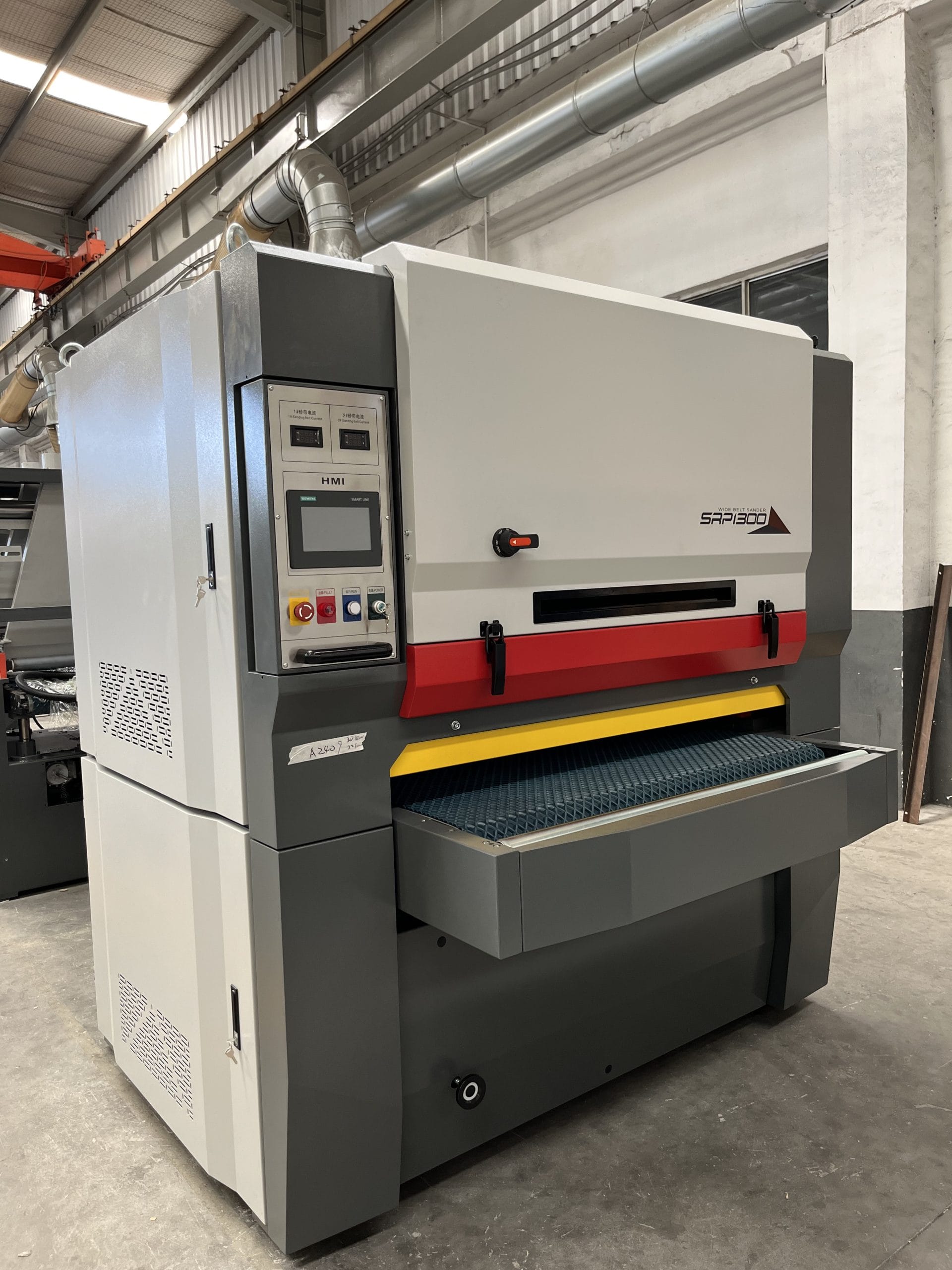

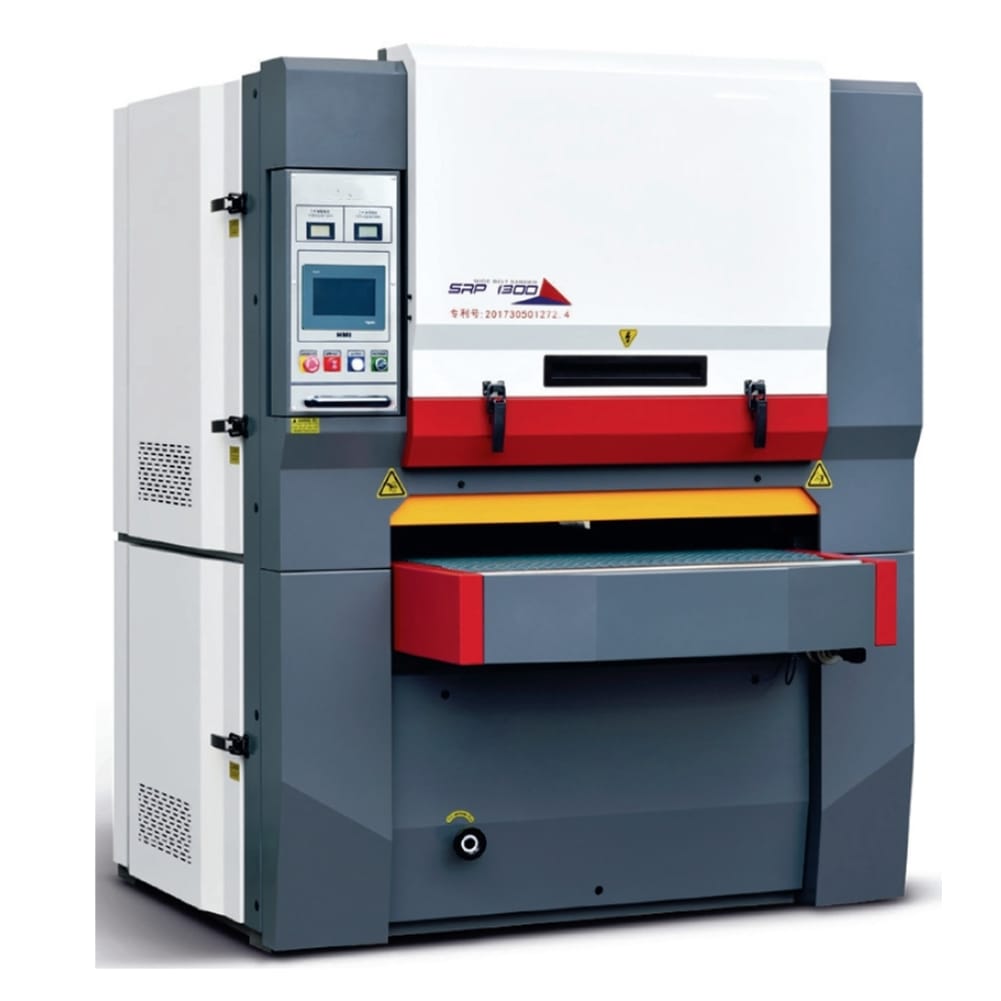

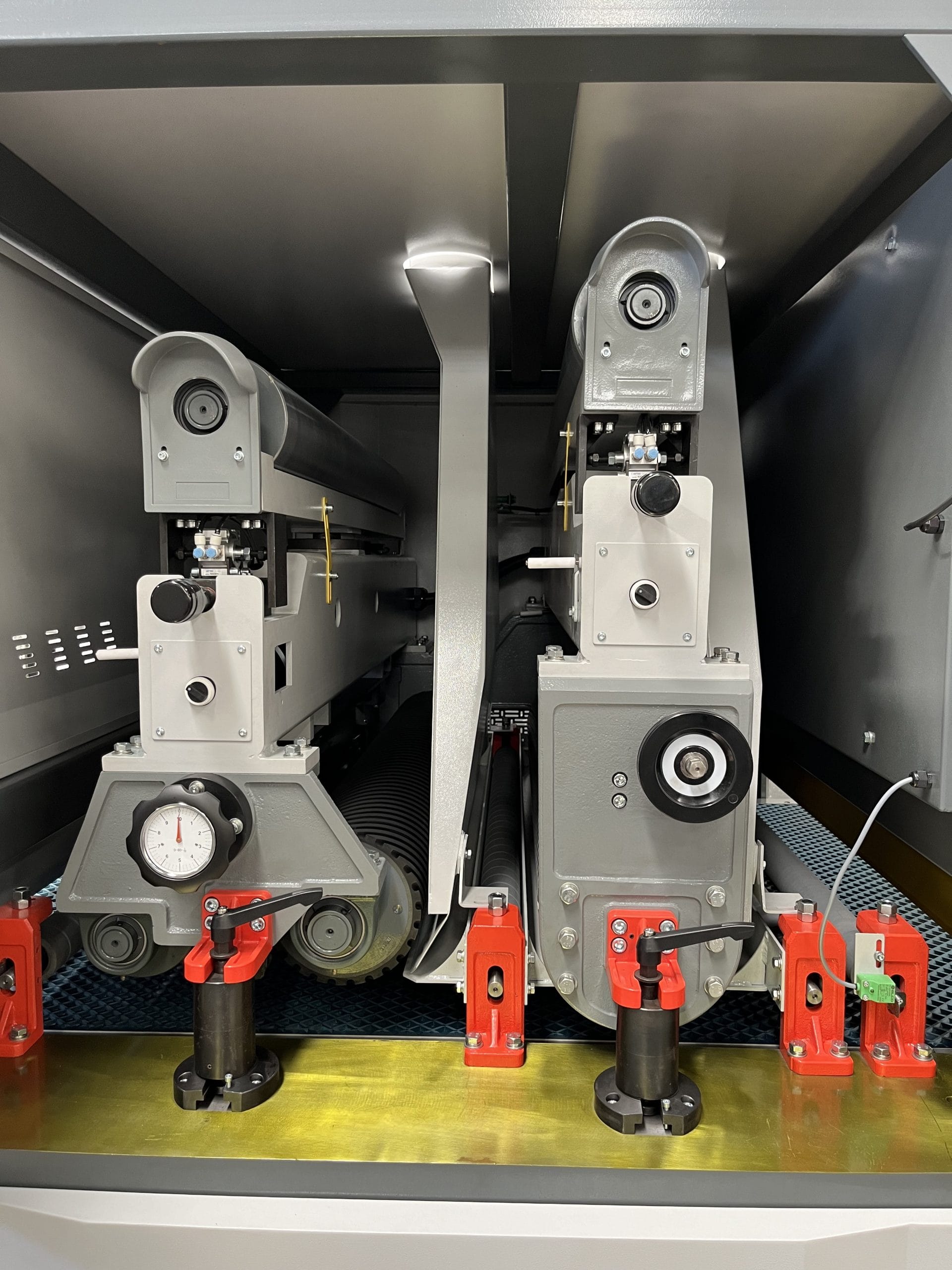

Wide belt sanding machine is used for calibration and sanding wood panels, such like soild wood,plywood ,MDF etc, steel roller and rubber roller with pad
