| Model | RTZP1300 |
| Power of front clipper | 3KW |
| Power of rear clipper | 3KW |
| Conveyor 1 | 3KW |
| Conveyor 2 | 3KW |
| Conveyor 3 | 1.5KW |
| Lifting power | 3kw |
| Power of veneer collector | 1.5KW |
| Heating power | 5.7kw |
| Knife length | 1400mm |
| Min width of veneer before processing | 200mm |
| Veneer thickness | 1~6mm |
| Width of veneer after processing | 900~1350mm |
| Length of veneer after processing | 900~2600mm |
| Efficiency | 300~350piece/hour |
| Feeding speed | 30~40m/min |
| Floor space | 4x13m |
| Dimension | 13*2.3*2.4m |
| Weight | 7500KG |

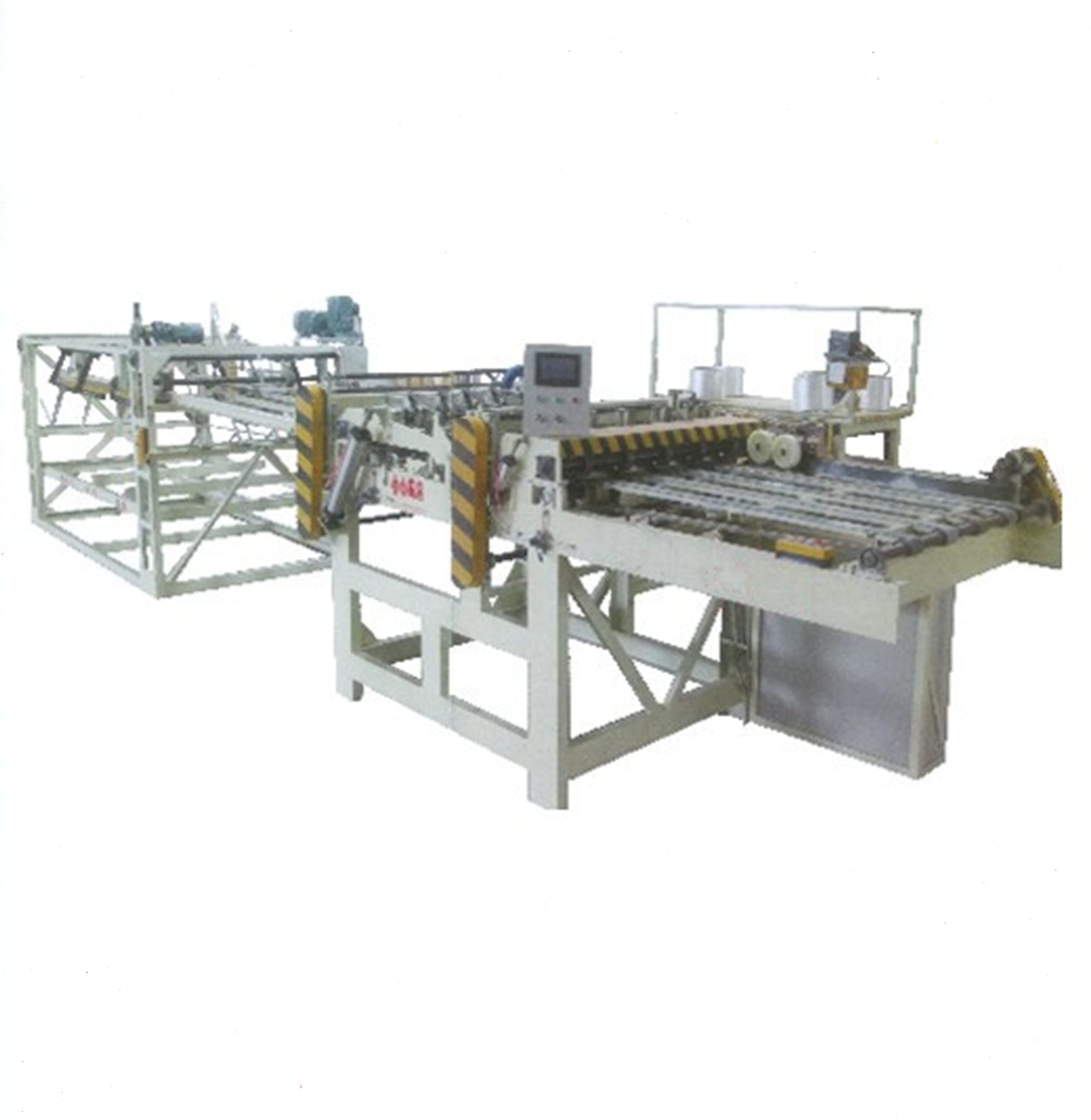

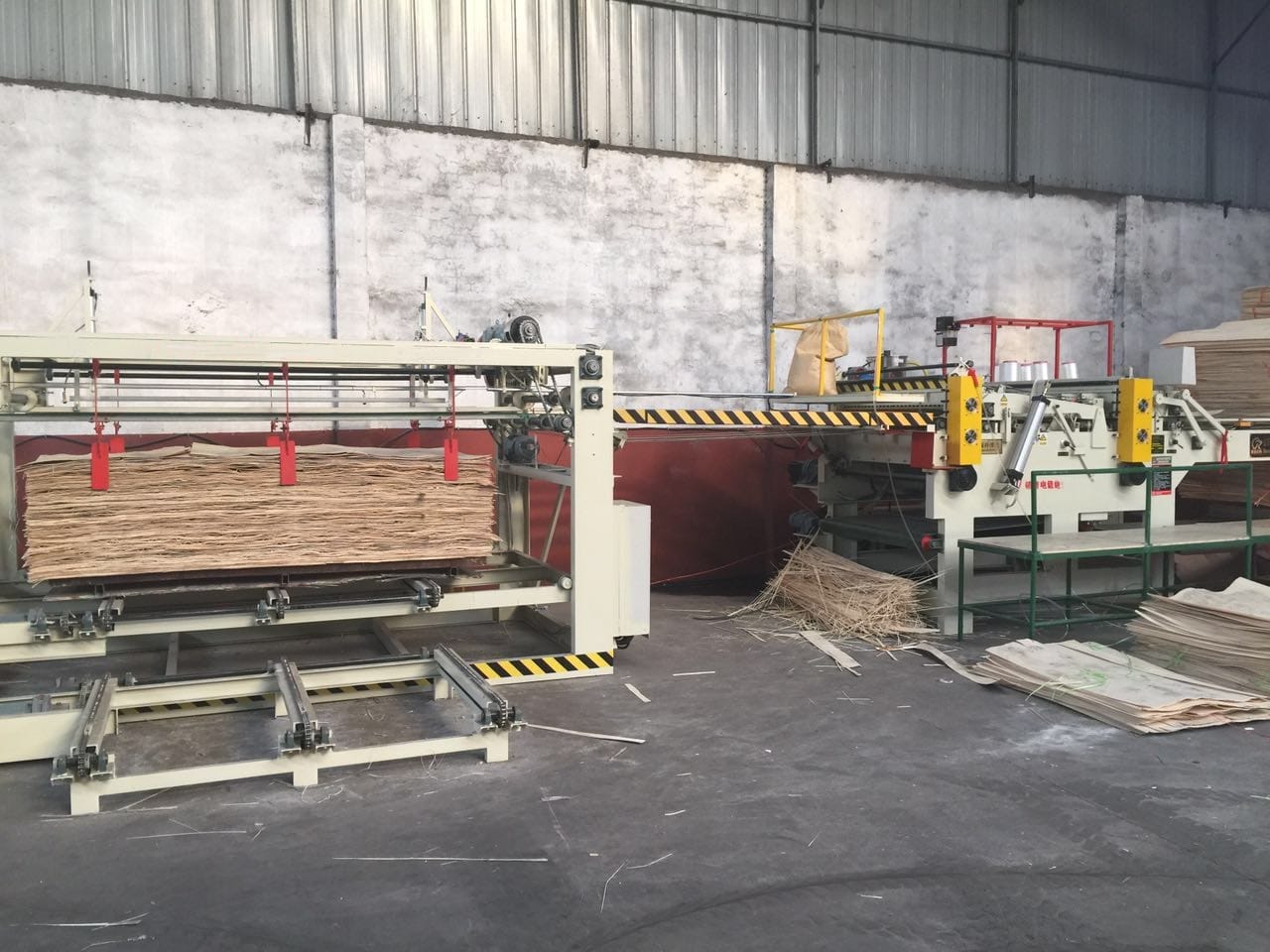

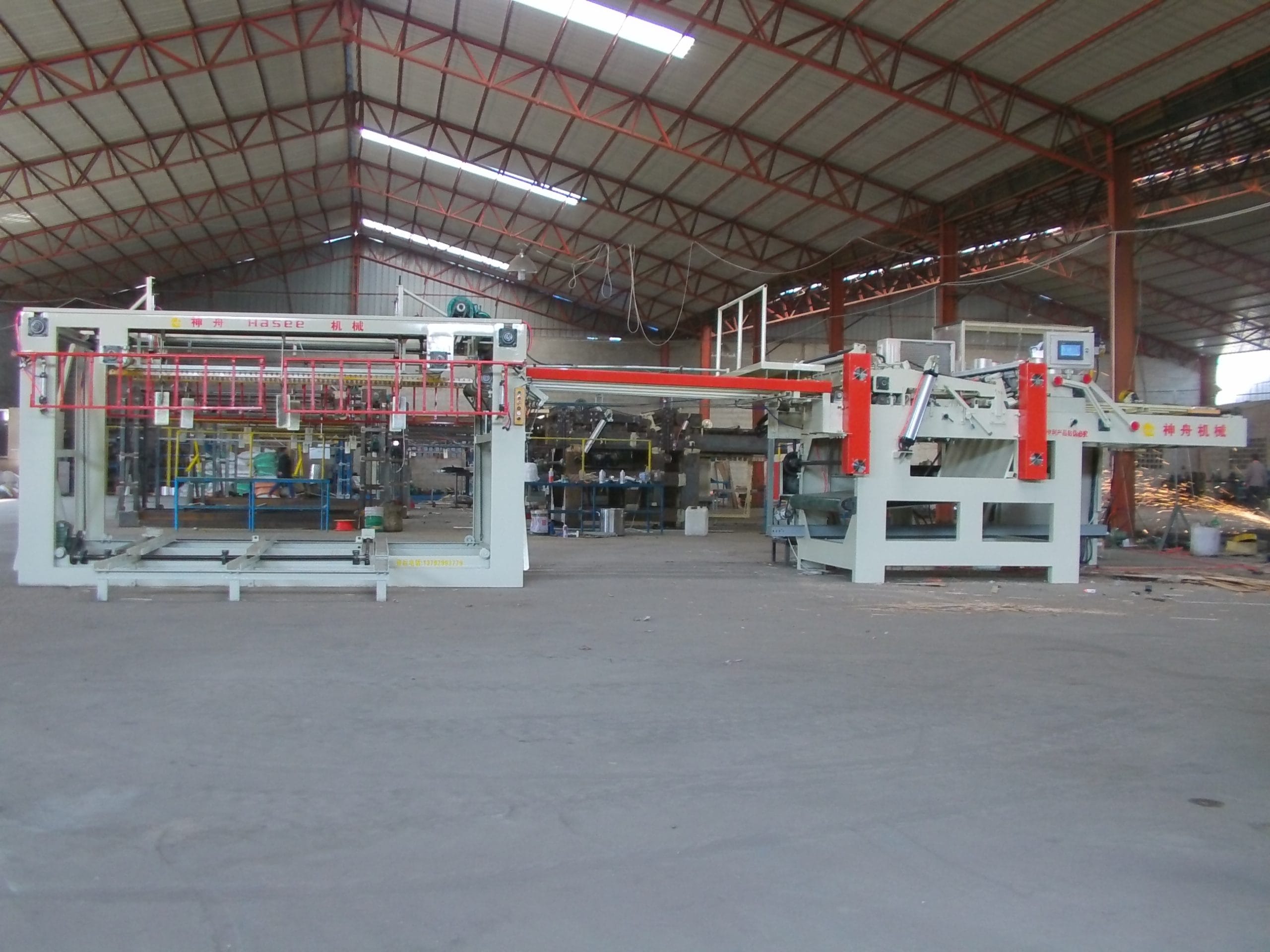

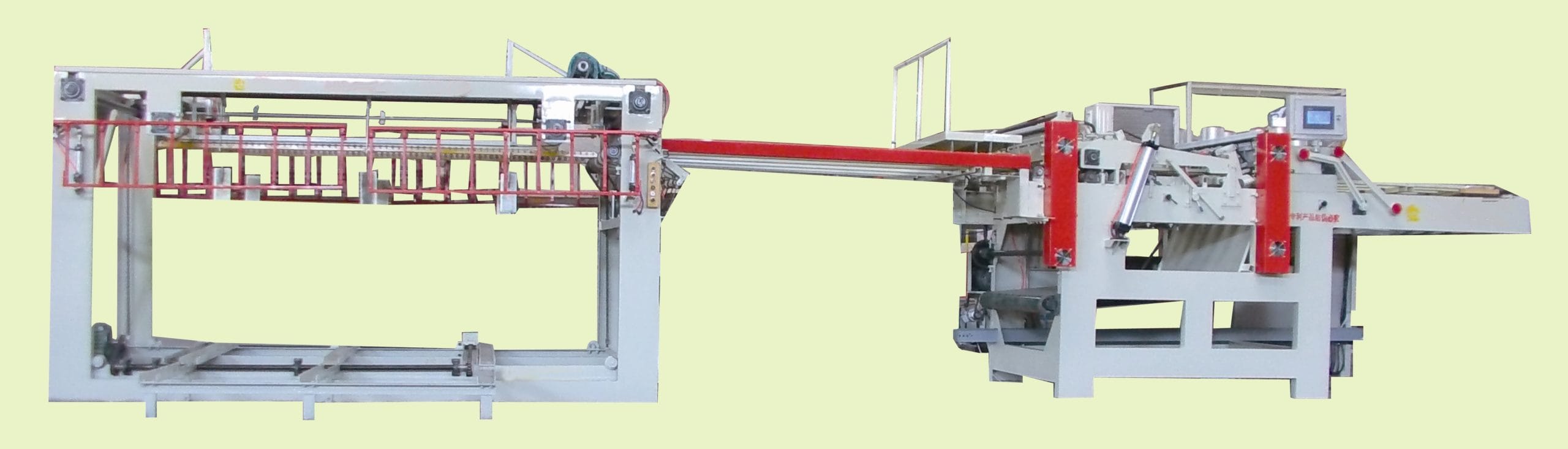

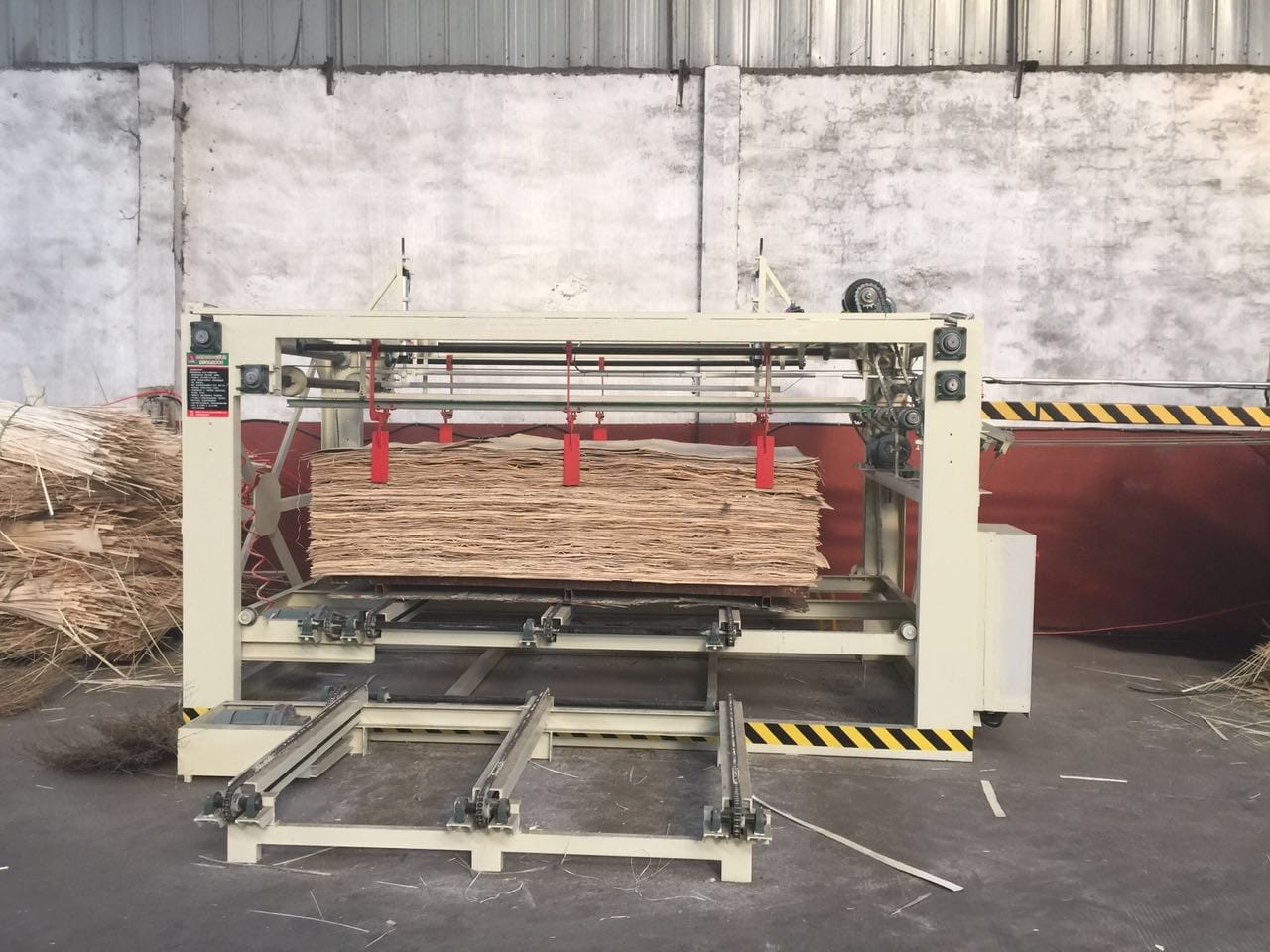

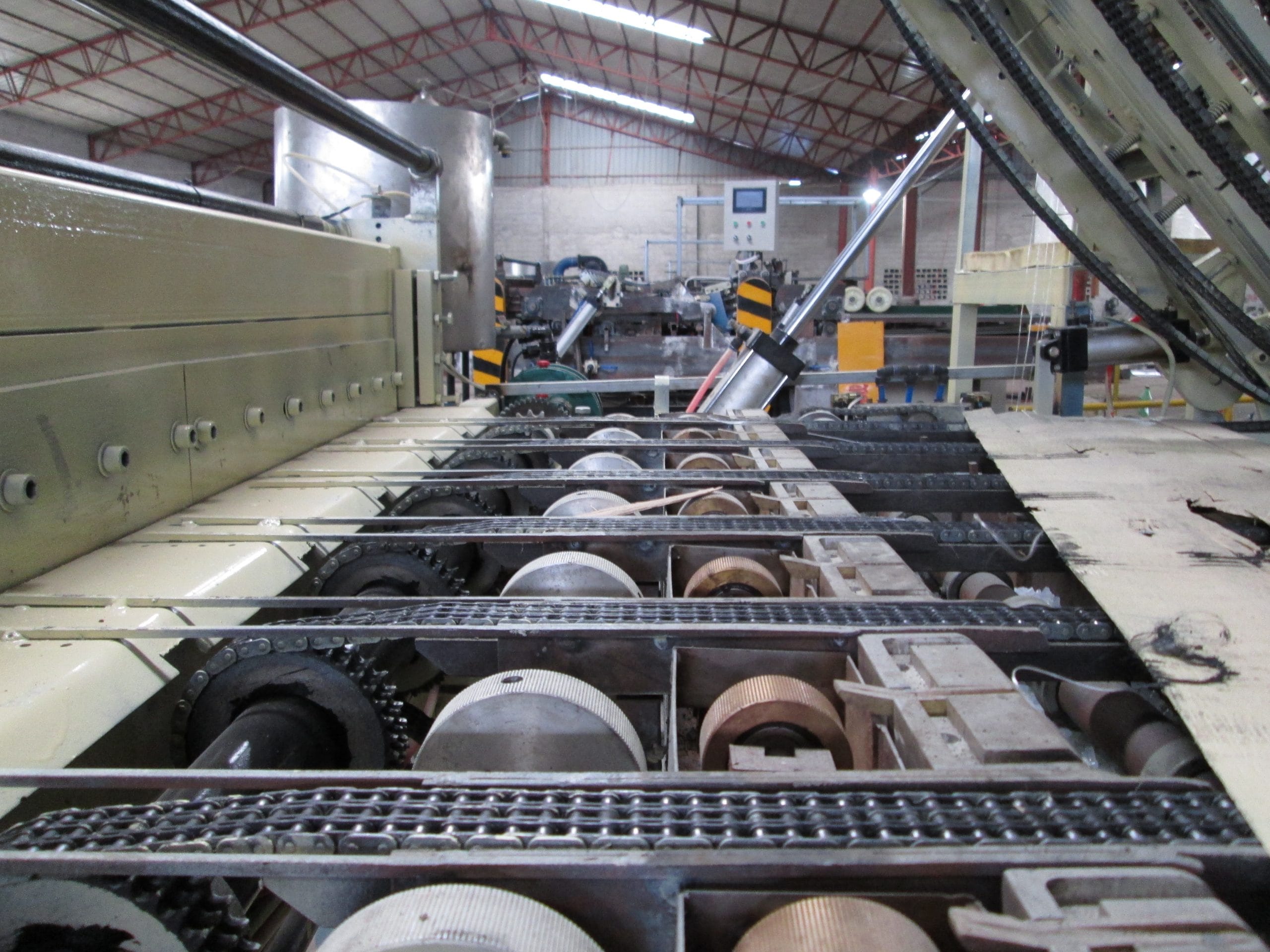

PLYWOOD VENEER COMPOSER MACHINE is specially used in plywood production, for core veneer splicing. It joints the regular or irregular veneer into whole piece of veneer for plywood. This machine save the labor cost, improve product quality and production efficiency. It is widely used for block board, multiply wood, core veneer of plywood and flooring.
