| Model | LS1800 |
| Min splicing length | 300mm |
| Min splicing width | 40-1600mm |
| Splicing thickness | 0.3-2mm |
| Splicing speed | 5-50 M/min |
| Working table height | 920mm |
| Splicing temperature | 100-220℃ |
| Pressure | 5kgf/m2 |
| Total power | 8kw |
| Overall dimension | 2100*2100*1700mm |

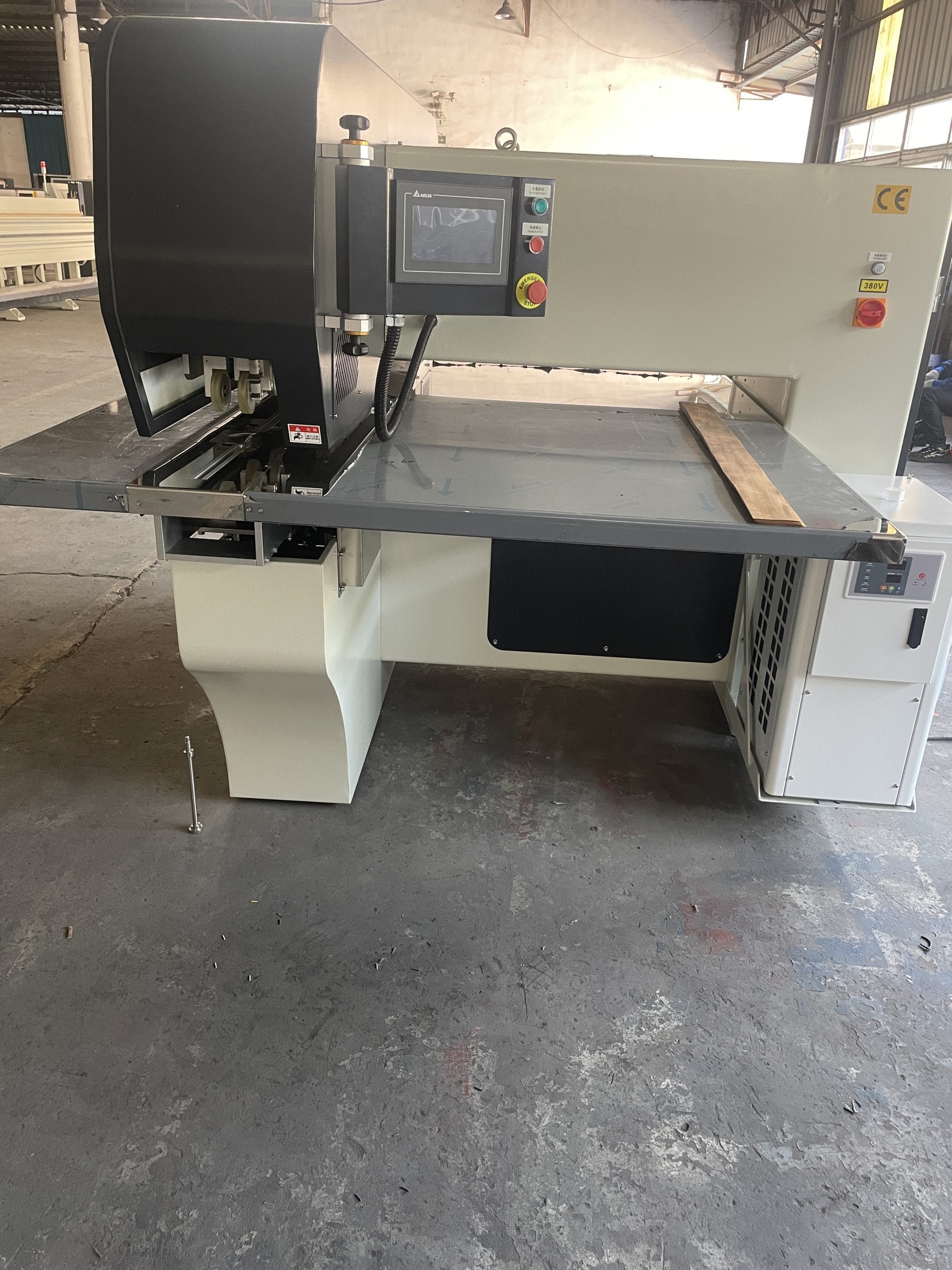

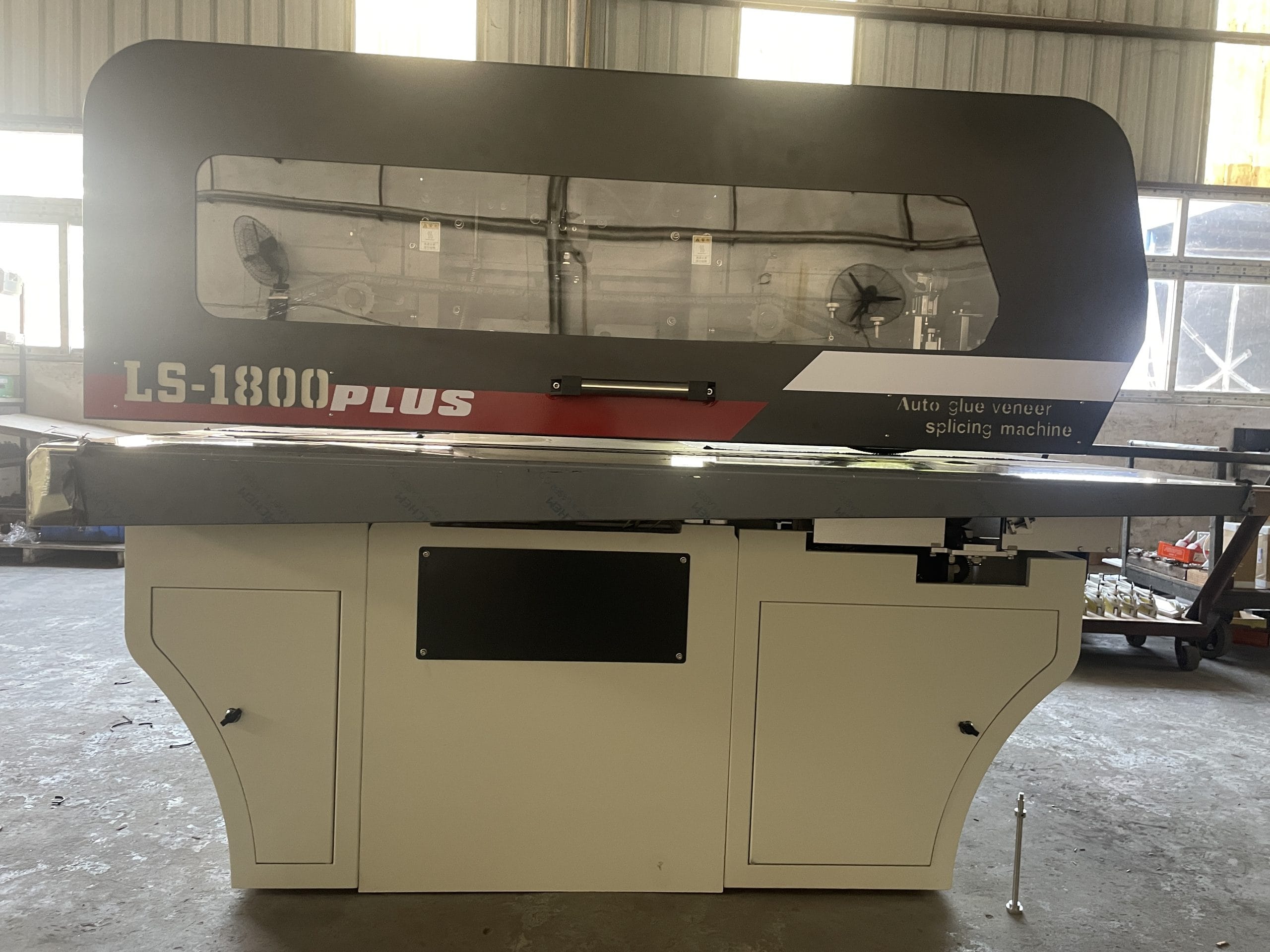

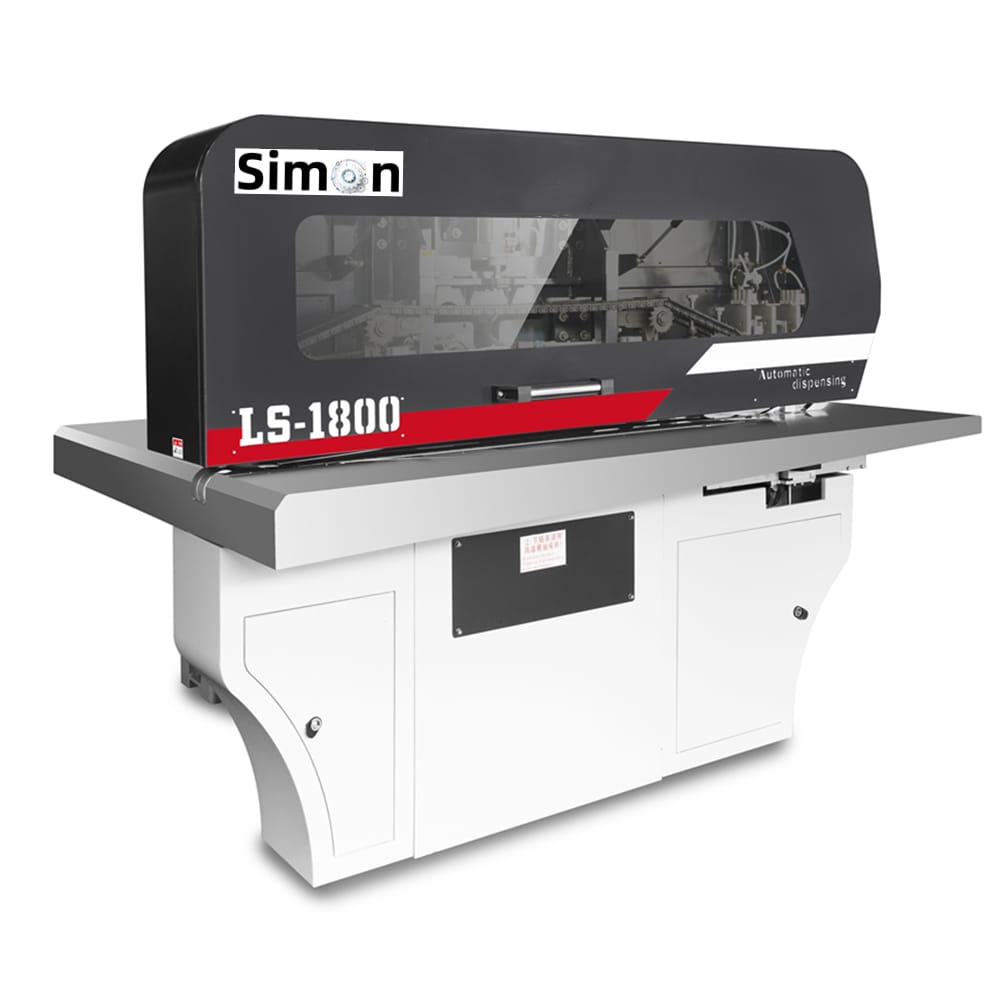

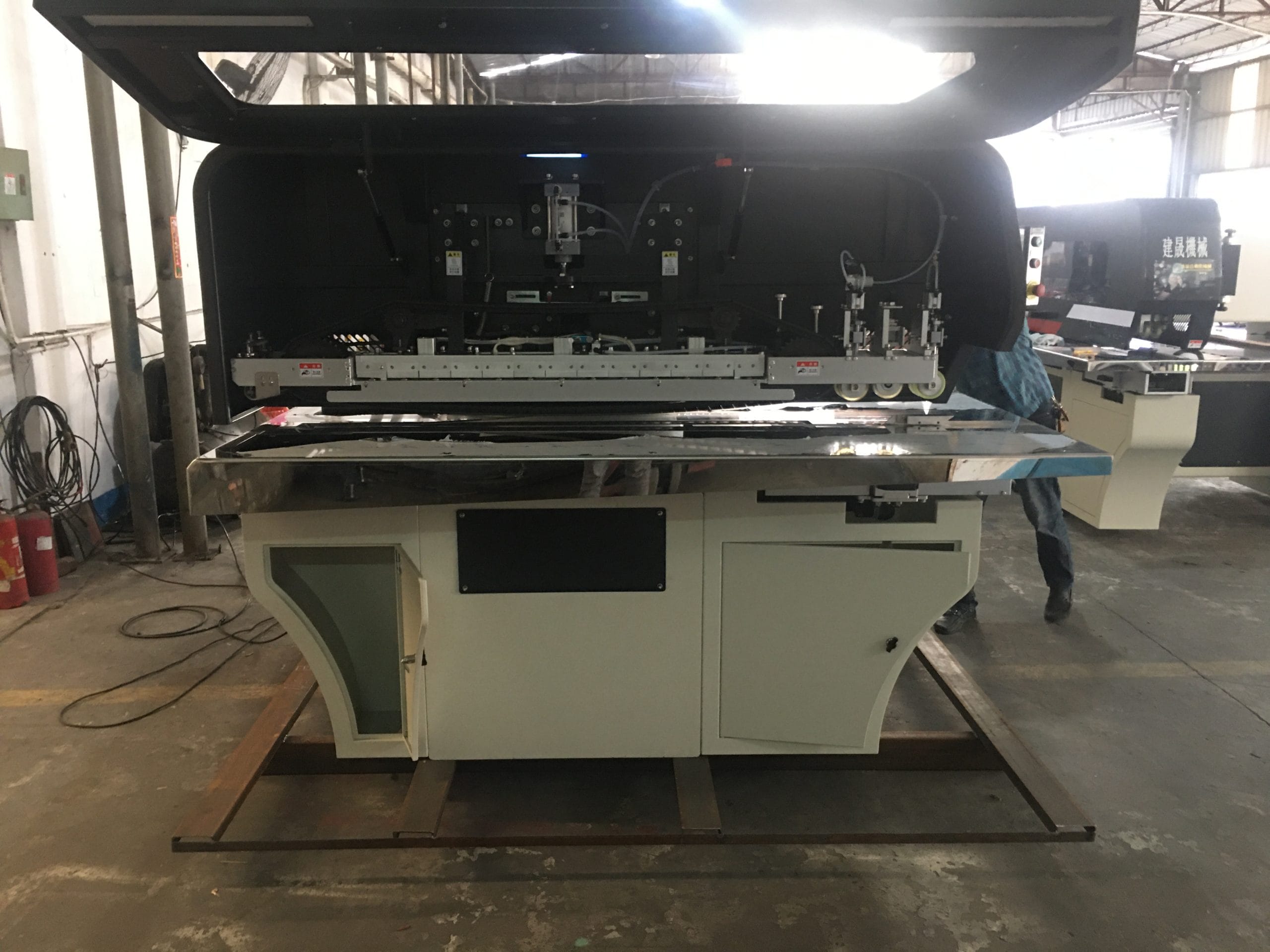

Veneer Splicing machine

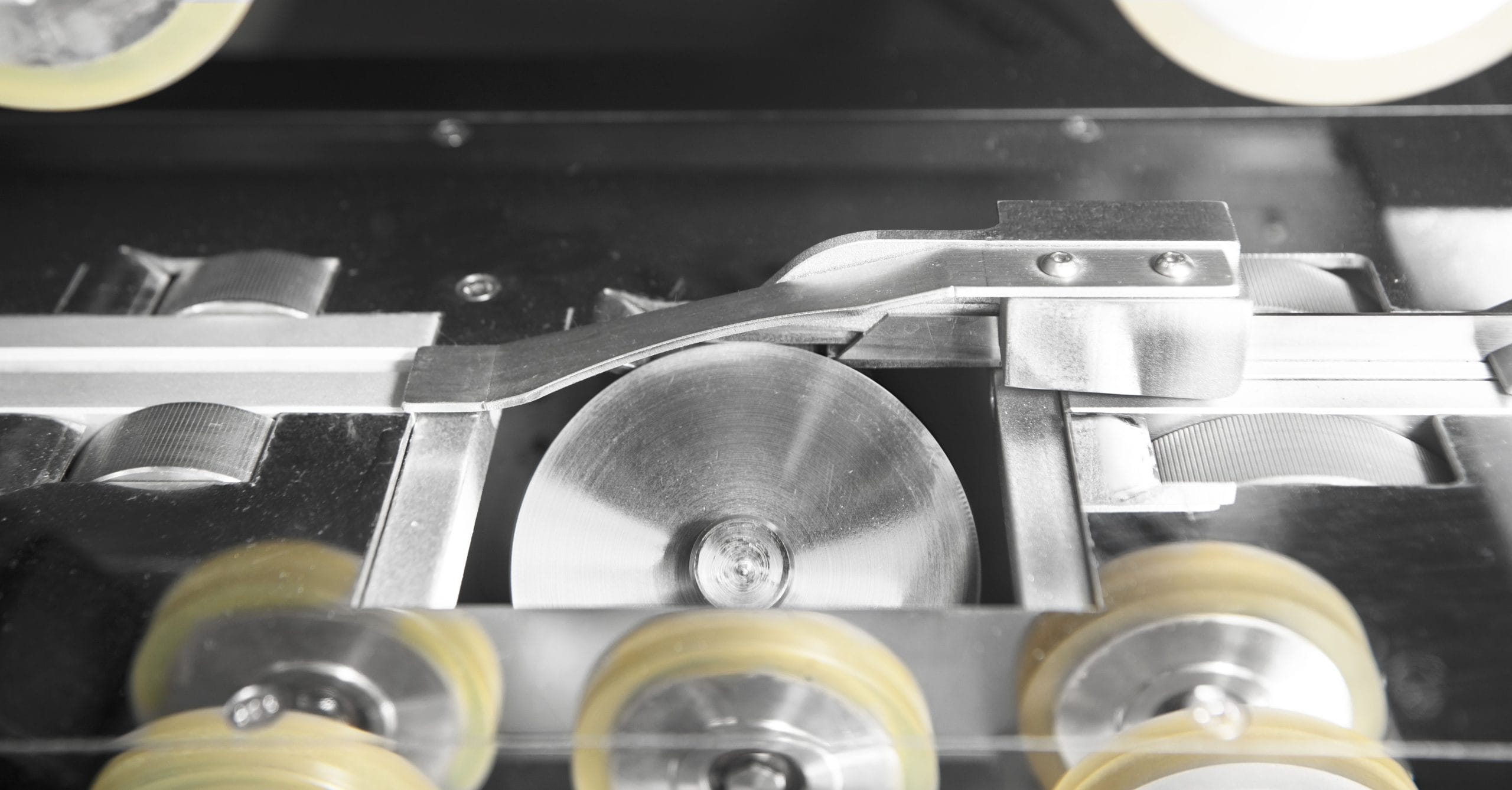

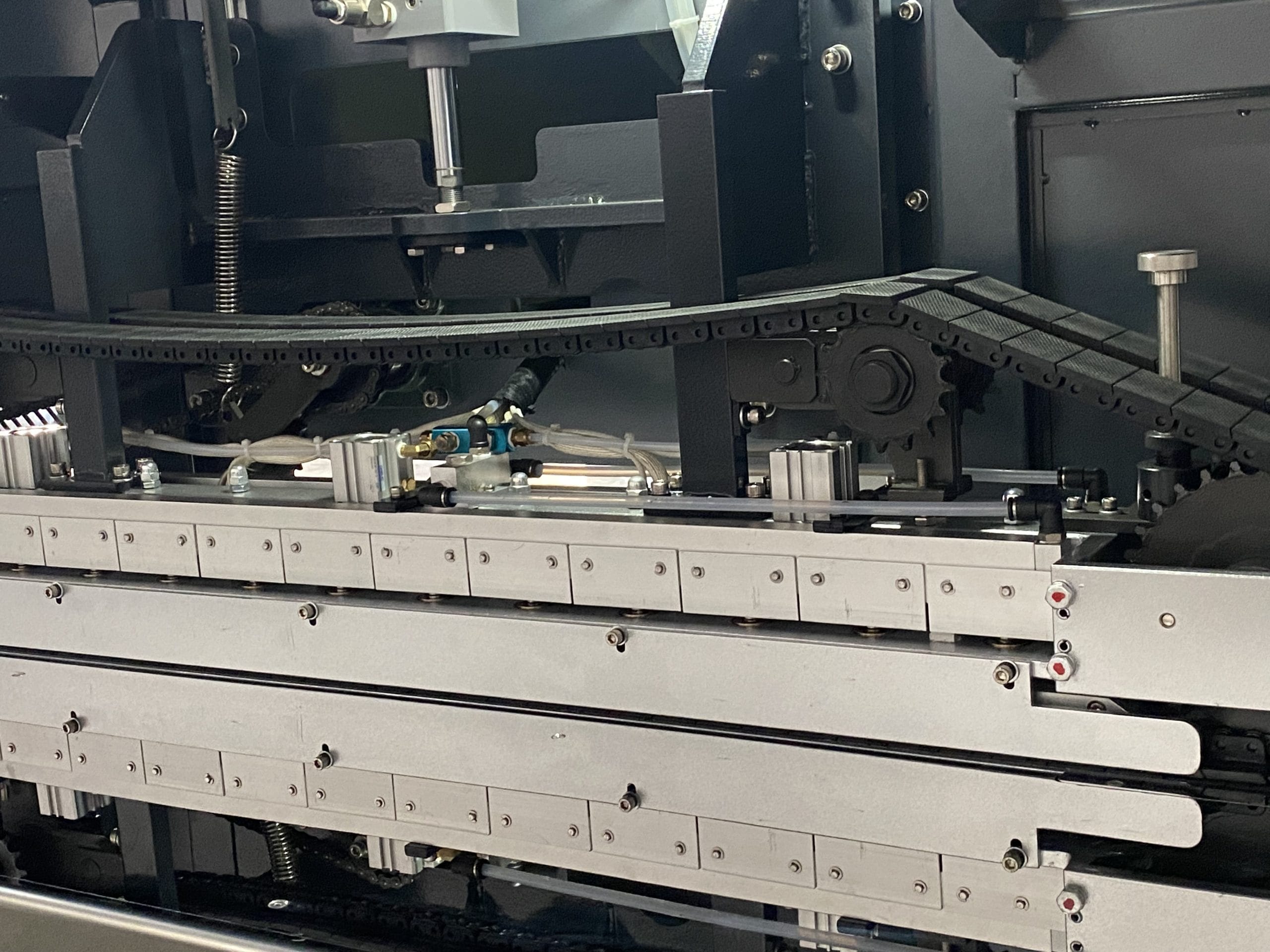

*Precise control of chain pressure using special cylinders.
*Mechanical design is fully compliant with safety regulations.

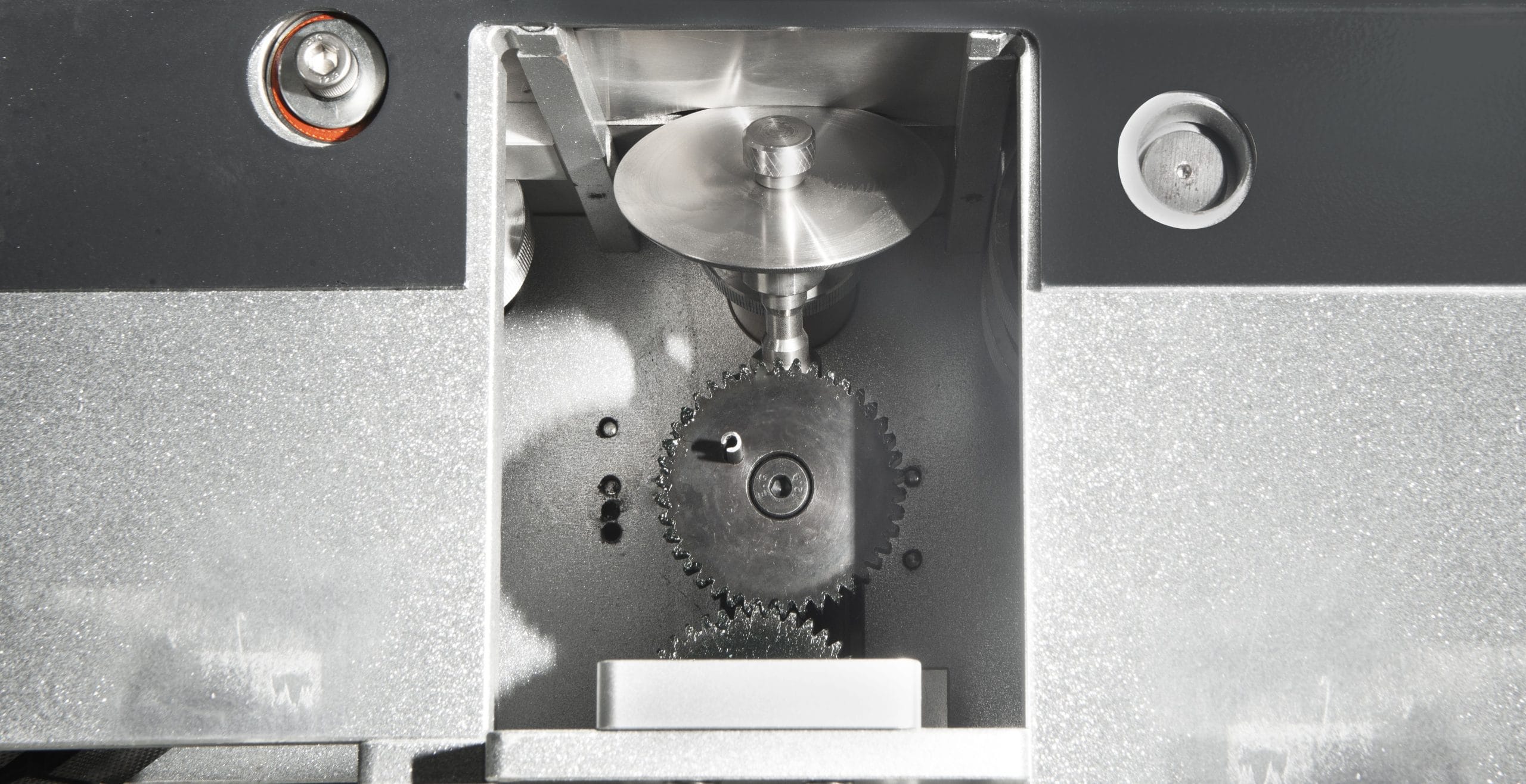

*The built-in cartridge is driven by a fine-tuned high-speed motor.
*Additional automatic cooling system to prolong the use of adhesive.
*The upper base is controlled by pneumatic cylinders and linear guide rails for precise positioning.
*Adjustment tabs for glue application on veneer edges.
*Low total power consumption and narrow heating zones reduce the amount of veneer distortion.
