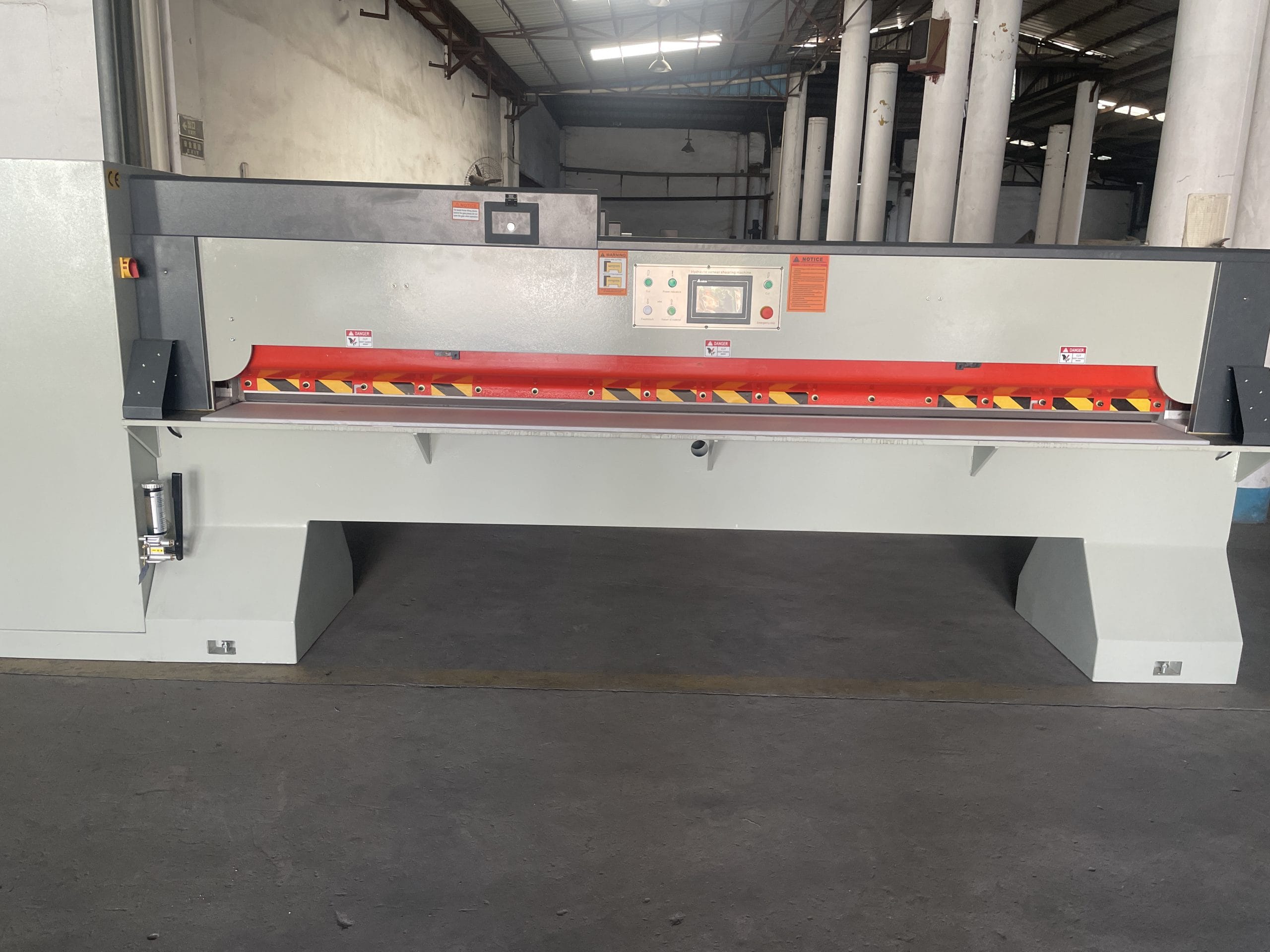

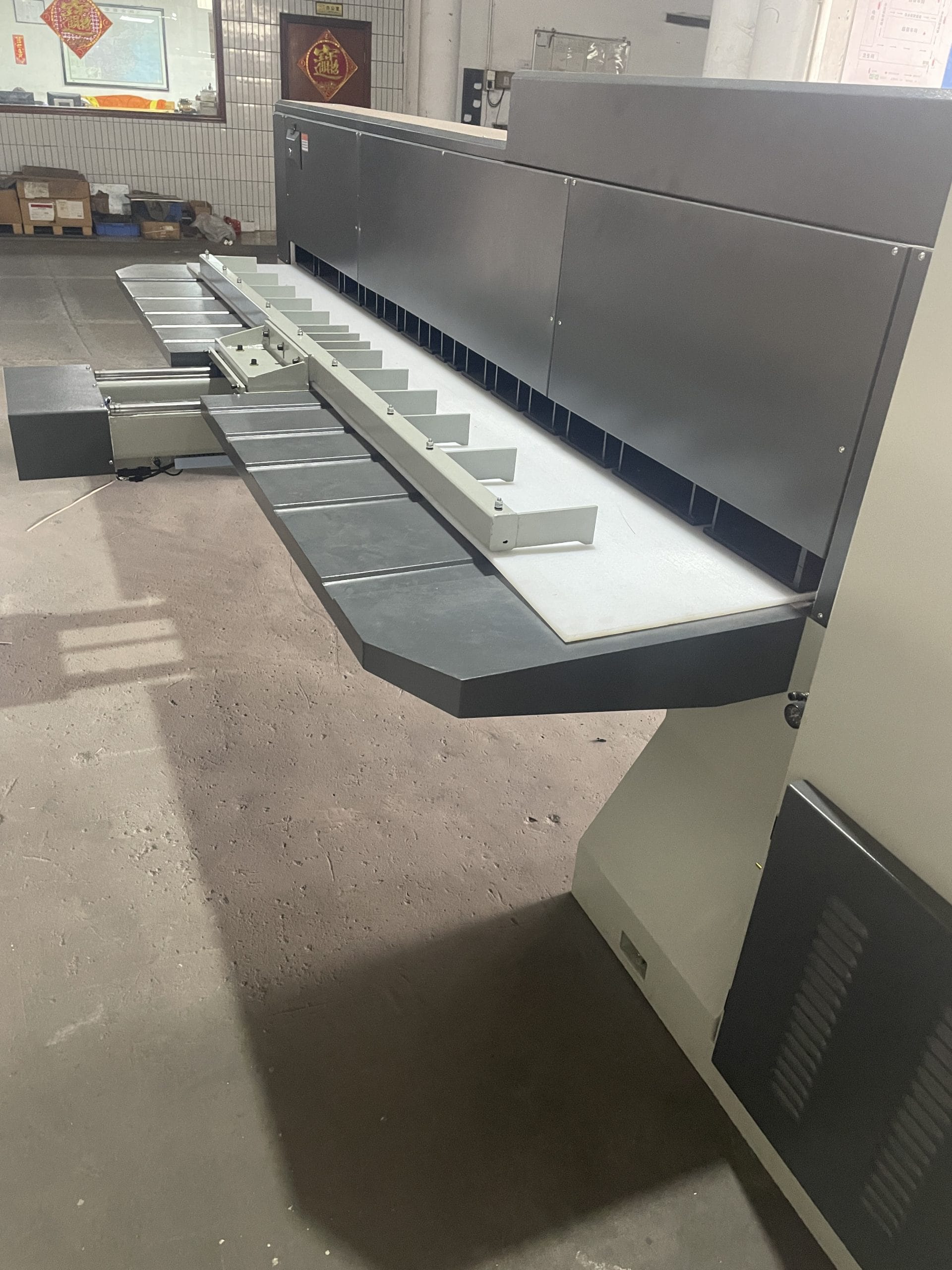

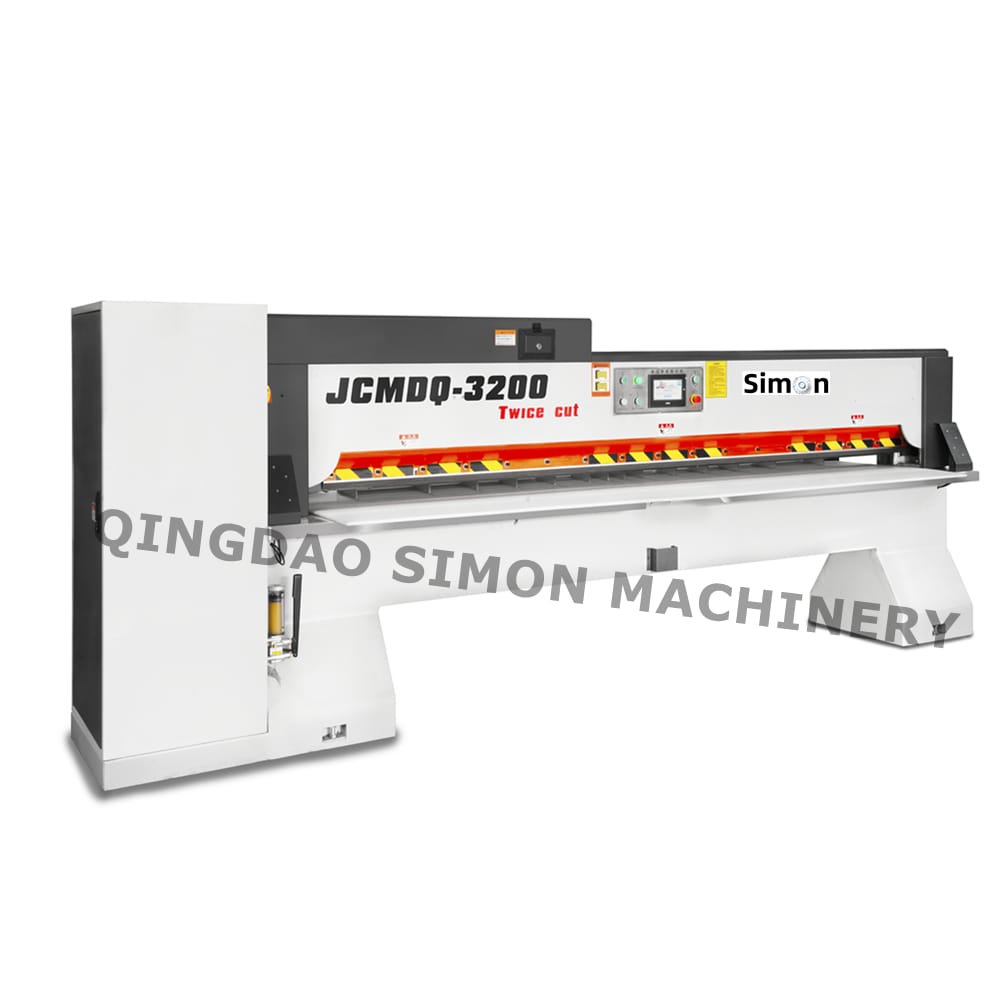

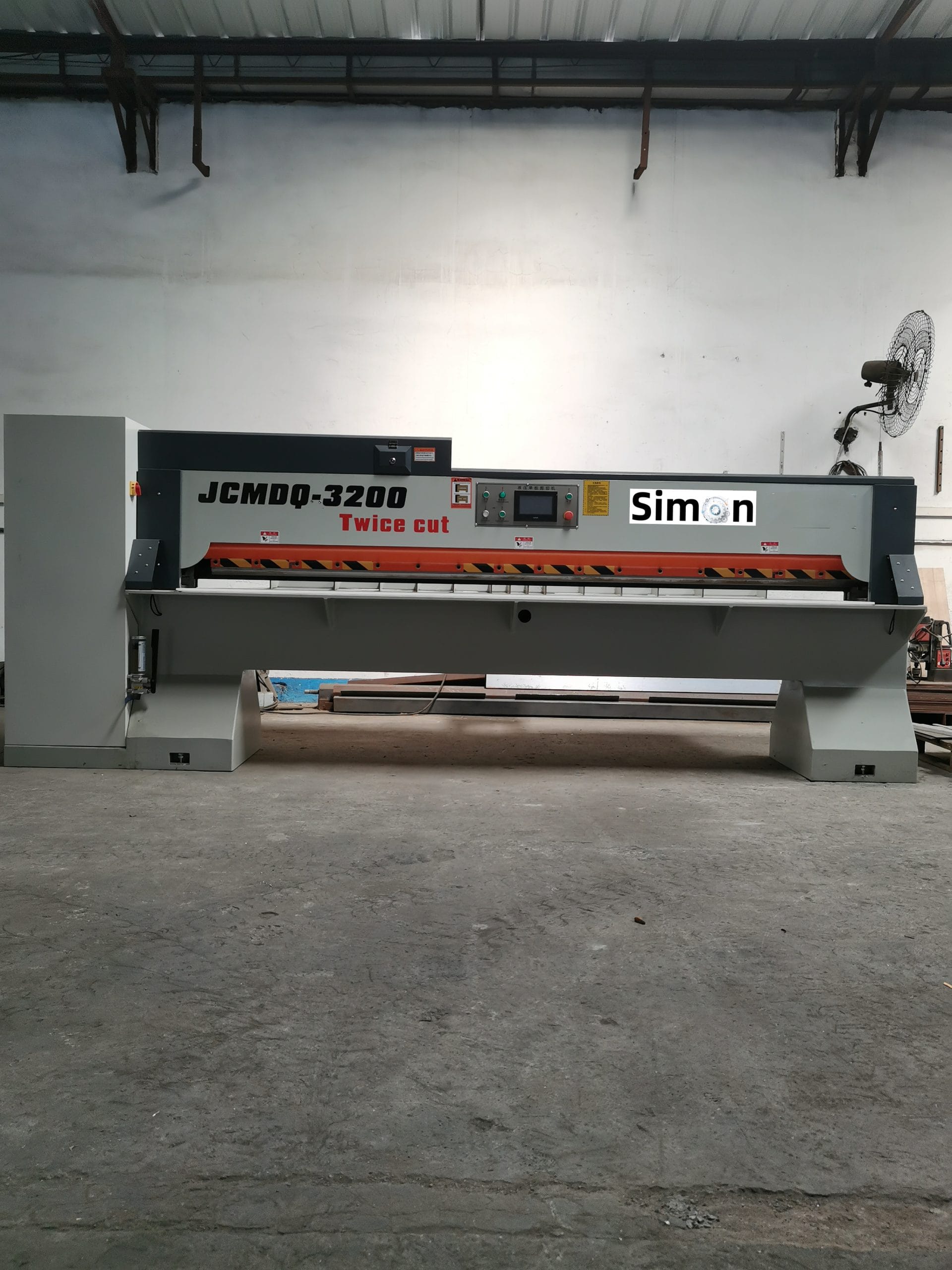

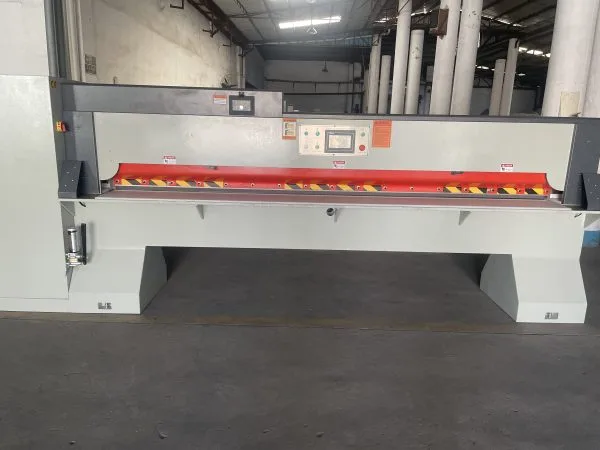

JCMDQ3200 Single Blade Double Cut Veneer Guillotine Machine

ModelJCMDQ3200JCMDQ3800
Max cutting length3200mm3800mm
Max Cutting height50mm50mm
Max Cutting width650mm650mm
Max working pressure10mpa15MPA
Total power4.18kw6.5kw
Overall dimension4400*1700*1700mm5000*1700*1700mm
Weight2600kgs2700kg

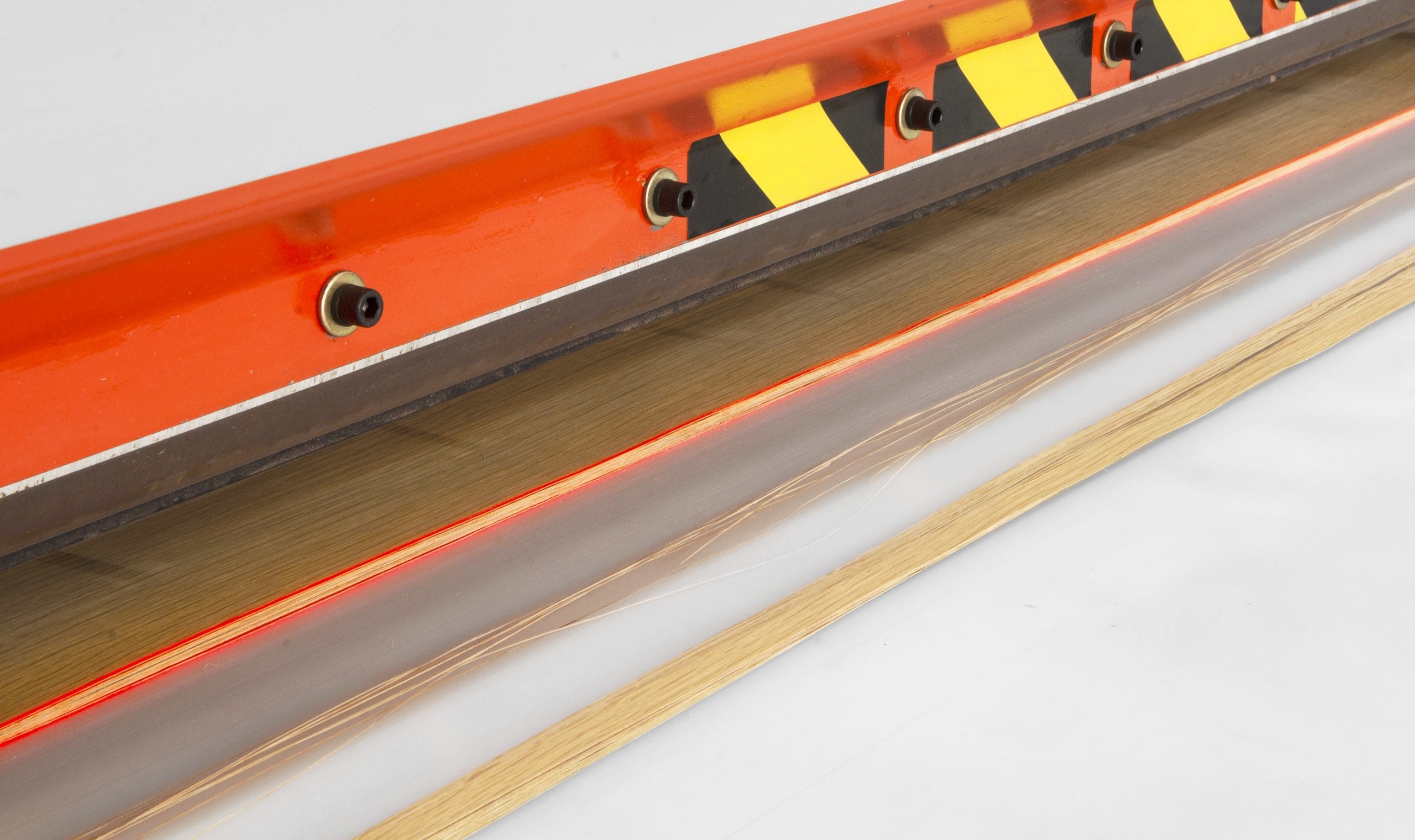

Veneer Guillotine Machine with single blade double cut to cutting the veneer more straight,then after goes to veneer splicer machine,Both hands hold down the shear button, the pressure beam pressure material first cut after the knife rises after the pressure beam does not let go of the material, go inside one millimeter, and then the second cut, cut and then at the same time the knife rises the pressure beam rises.
