| Model | F45-380E | F45-320E |
| Dimensions of sliding table | 3800*422mm | 3200*422mm |
| Max sawing thickness(90°) | 95mm 350mm saw | 95mm 350mm saw |
| Max sawing thickness(45°) | 65mm 350mm saw | 65mm 350mm saw |
| Power of main saw spindle | 5.5kw | 5.5kw |
| Rotary speed of main saw spindle | 4500/5500r/min | 4500/5500r/min |
| Diameter of main saw | 350mm | 350mm |
| Diameter of main saw spindle | 30mm | 30mm |
| Power of grooving saw | 0.75kw | 0.75kw |
| Rotary speed of grooving saw | 8100r/min | 8100r/min |
| Diameter of grooving saw | 120mm | 120mm |
| Diameter of grooving saw spindle | 22mm | 22mm |
| Tilting saw blade | 45° | 45° |
| Dimension | 3800*1100*840mmm | 3200*1100*840mmm |
| Weight | 900kg | 800kg |

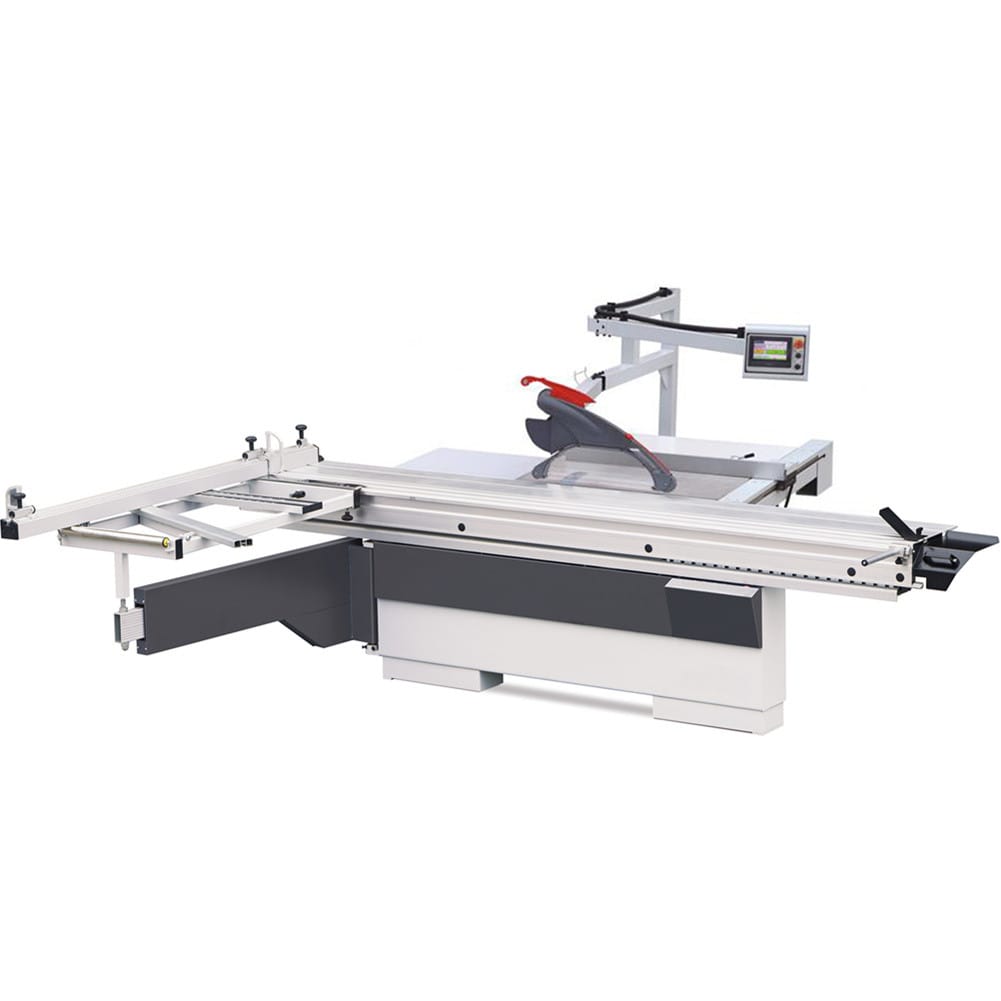

CNC sliding table panel saw used for cutting different panel boards,such like plywood,MDF,particleboard etc
