| MODEL | MX-1212 |
| Cutting length | 410-1200mm(90 degree) 410-1000mm(45/60 degree) |
| Saw power | 2.2kw*4 |
| Milling power | 3kw*2 |
| Feeding power | 1.1kw |
| Saw spindle speed | 2840r/min |
| Milling spindle speed | 8600r/min |
| Capacity | W100*L520mm*5 pieces W100*L1200mm* 5pieces 180-200m2 |
| Size | 2400*2300*1600mm |
| Weight | 2400kgs |

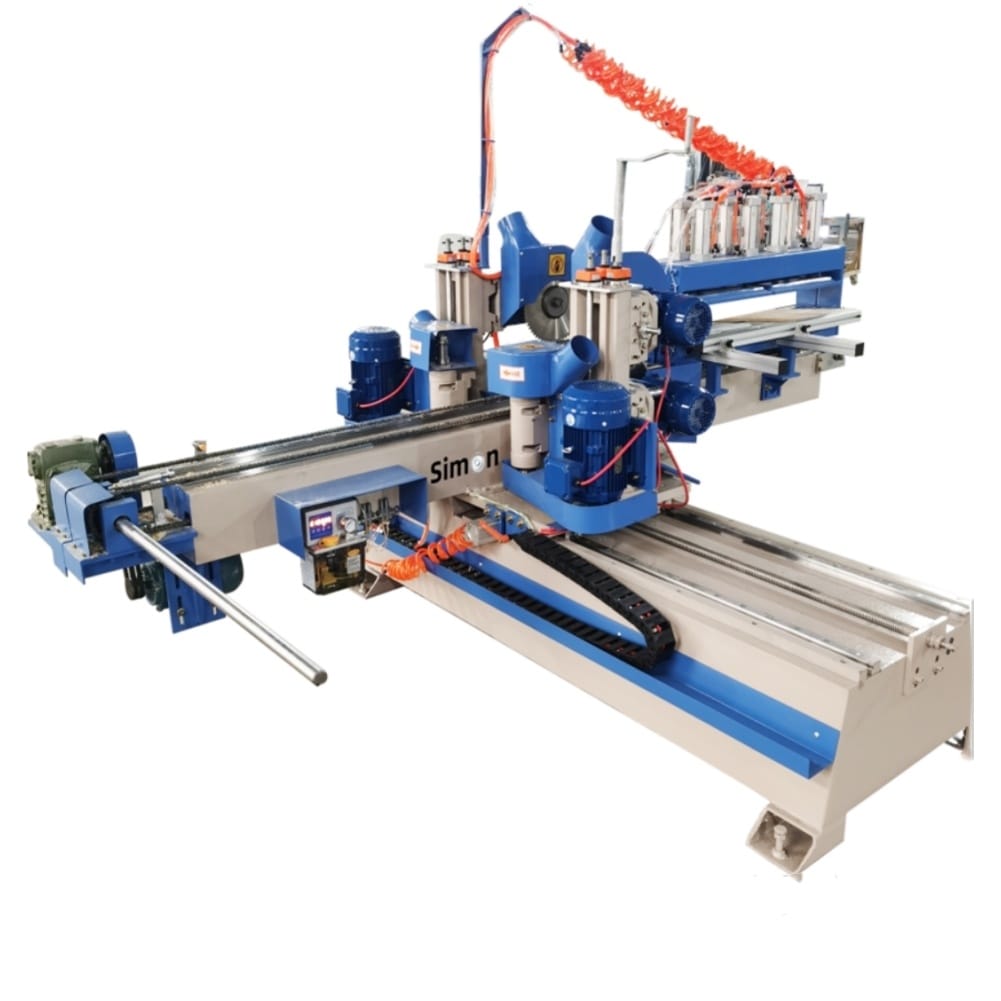

Chevron Saw Milling Machine is used for cutting and milling T&G parquet, herringbone,chevron parquet, firstly cutting double sides then milling
