| Model | BSG400R-RP |
| Working width | 30-400mm |
| Working thickness | 3-100mm |
| Feeding speed | 5-25m/min |
| Min working length | 400mm |
| The first group Belt speed | 13m/s |
| The second group Belt speed | 10m/s |
| Size of abrasive belt | 1800×410mm |
| 1st unit roller diameter | 140mm |
| 2nd unit roller diameter | 110mm |
| The first group Belt motor power | 7.5Kw |
| The second group Belt motor power | 5.5Kw |
| Feeding motor | 0.75kw |
| Lifting Motor | 0.37Kw |
| Working pressure | 0.55Mpa |
| Compressed air consumption | 0.09M3/min |
| Speed required for cleaning equipment | 25-30m/s |
| Dimensions | 1250*1700*1800mm |
| N.W . | 1100kg |
| FOB | USD5200 |

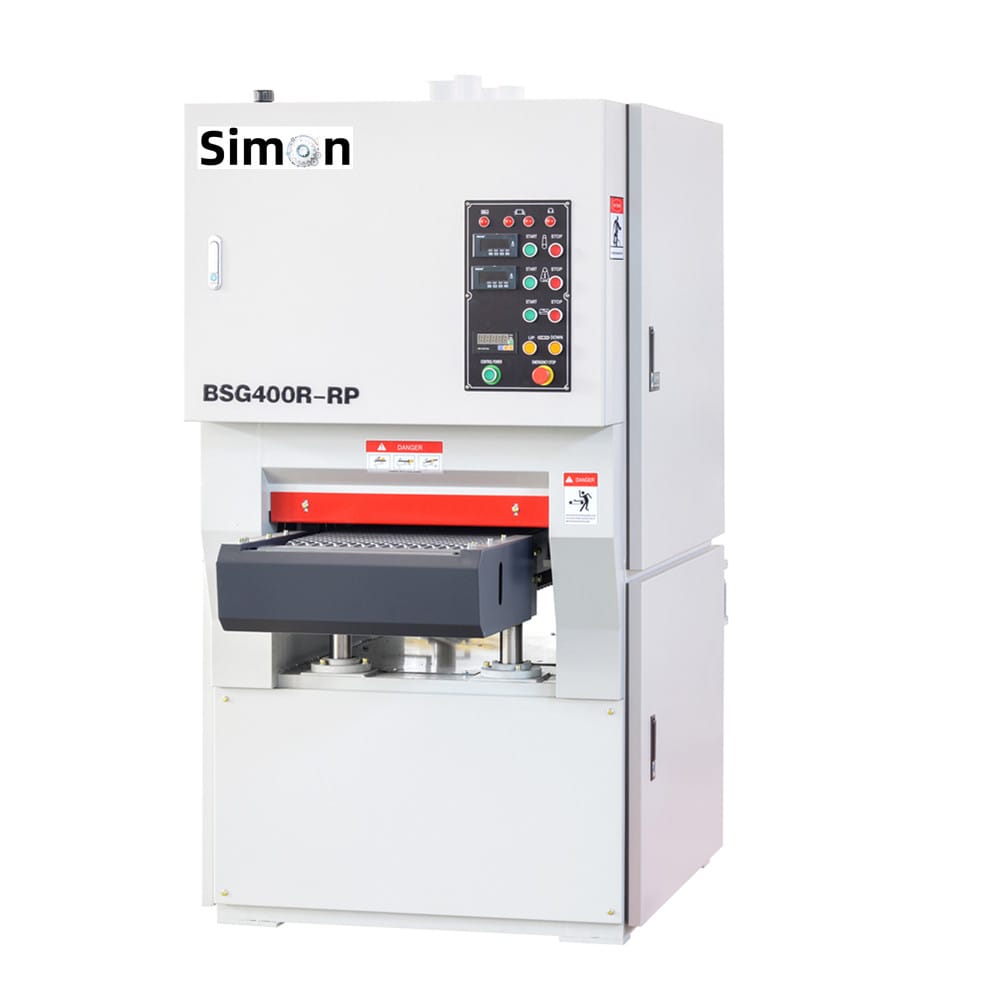

Wide Belt Sander Machine Function and Characteristics:
(1) It is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door, marble, acrylic and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.

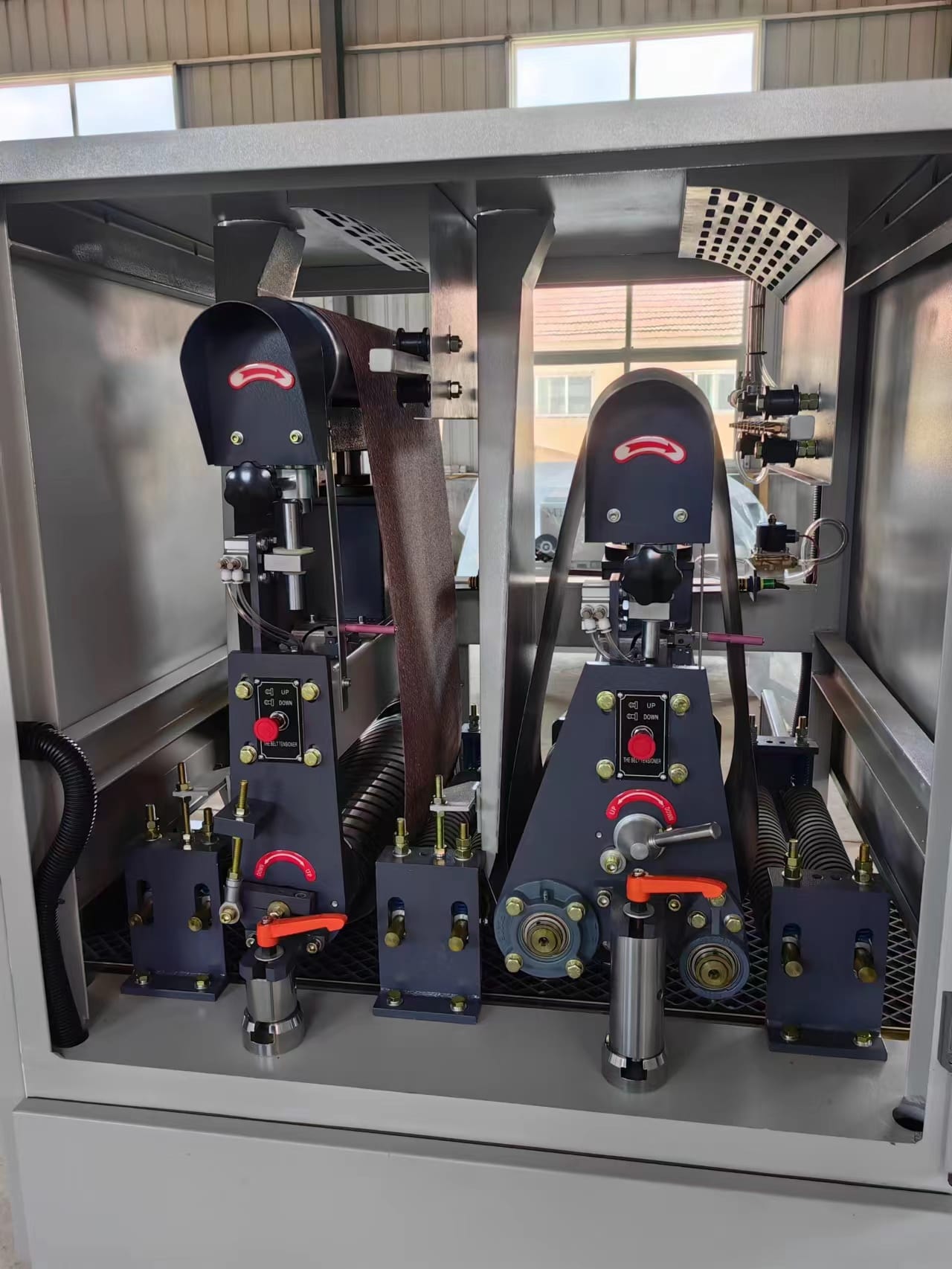

(2) The front roller is adjustable steel roller; the second one is rubber roller with sanding pad. Steel roller keeps calibrating and rubber roller is for fine polishing.
(3) The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.
